OUAZ-SS-105D,900

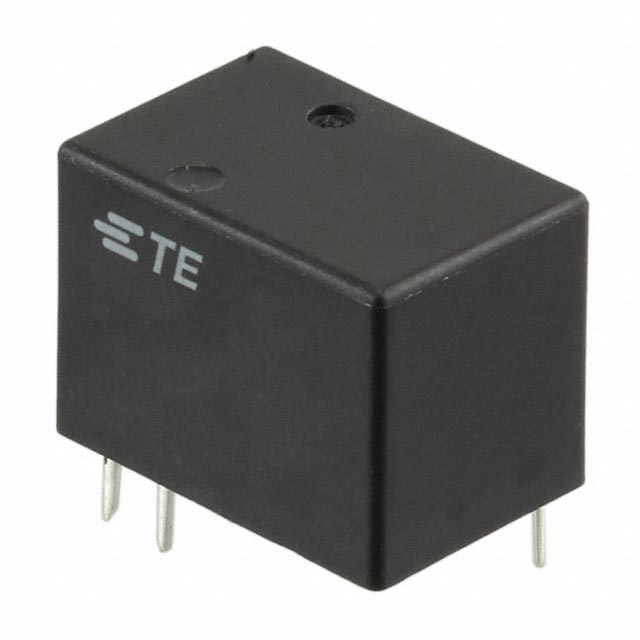

lmages are for reference only.OUAZ-SS-105D,900
RELAY TELECOM SPDT 1A 5V
Datasheet-
93,284 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Telecom Relay SPDT (1 Form C) Through Hole
OUAZ-SS-105D,900
| Category | Relays - Signal Relays-Up to 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | OUAZ, OEG |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 5VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 1 A |
| Switching Voltage | 120VAC, 24VDC - Max |
| Load - Max Switching | 120VA, 24W |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | - |
| Must Operate Voltage | 3.5 VDC |
| Must Release Voltage | 0.25 VDC |
| Operate Time | 5 ms |
| Release Time | 7 ms |
| Operating Temperature | -30°C ~ 60°C |
| Contact Material | Silver Palladium (AgPd), Gold (Au) |
| Approval Agency | - |
| Relay Type | Telecom |
| Grade | - |
| Qualification | - |
| Base Product Number | OUAZ-SS |
| Coil Current | 90.9 mA |
| Coil Resistance | 55 Ohms |
| Product Attribute |  |
 |
 |
 |
| Part Number | OUAZ-SS-105L,900 | OUAZ-SS-106L,900 | OUAZ-SS-109D,900 | OUAZ-SS-109L,900 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY TELECOM SPDT 1A 5V | RELAY TELECOM SPDT 1A 6V | RELAY TELECOM SPDT 1A 9V | RELAY TELECOM SPDT 1A 9V |
| Series | OUAZ, OEG | OUAZ, OEG | OUAZ, OEG | OUAZ, OEG |
| Packaging | Bulk | Tube | Tube | Tube |
