OVSTRGBLC6
lmages are for reference only.OVSTRGBLC6
LED RGB CLEAR TOP VIEW LED SMD
Datasheet1412 (3530 Metric)
66,955 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Red, Green, Blue (RGB) 626nm Red, 530nm Green, 470nm Blue LED Indication - Discrete 1.9V Red, 3.3V Green, 3.4V Blue 1412 (3530 Metric)
OVSTRGBLC6
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | TT Electronics/Optek Technology |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Color | Red, Green, Blue (RGB) |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 180mcd Red, 550mcd Green, 152mcd Blue |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.10mm x 3.50mm |
| Voltage - Forward (Vf) (Typ) | 1.9V Red, 3.3V Green, 3.4V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | - |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 626nm Red, 530nm Green, 470nm Blue |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 1412 (3530 Metric) |
| Supplier Device Package | Top View LED |
| Size / Dimension | 3.50mm L x 3.00mm W |
| Height (Max) | 1.55mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

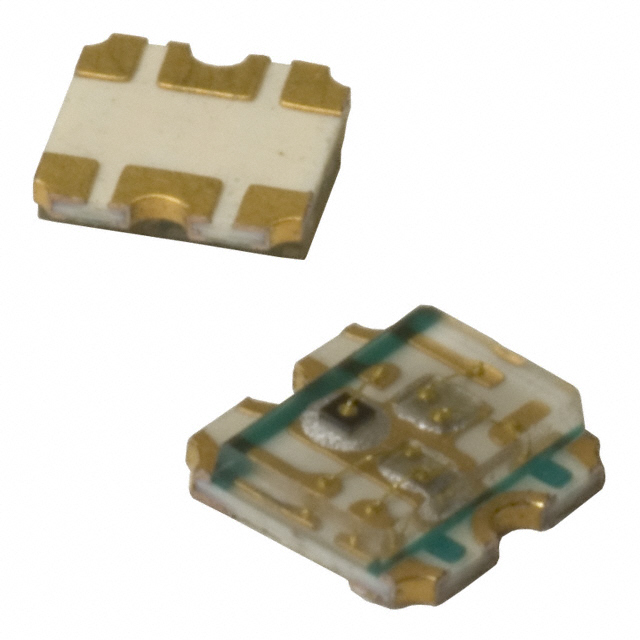

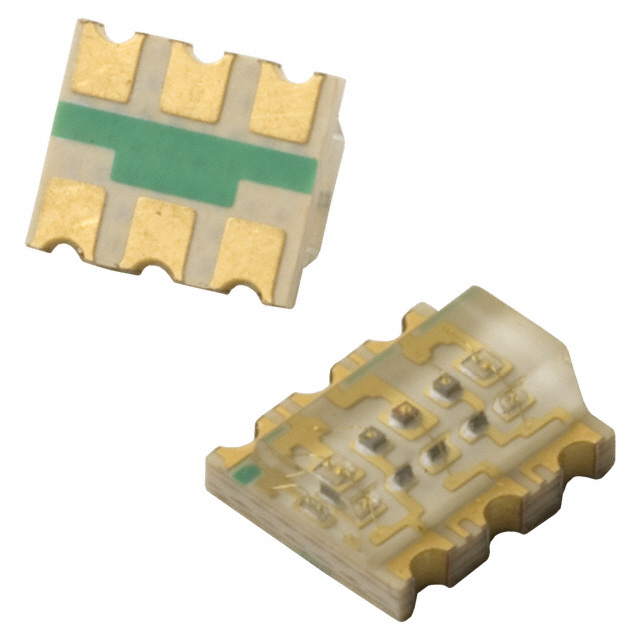

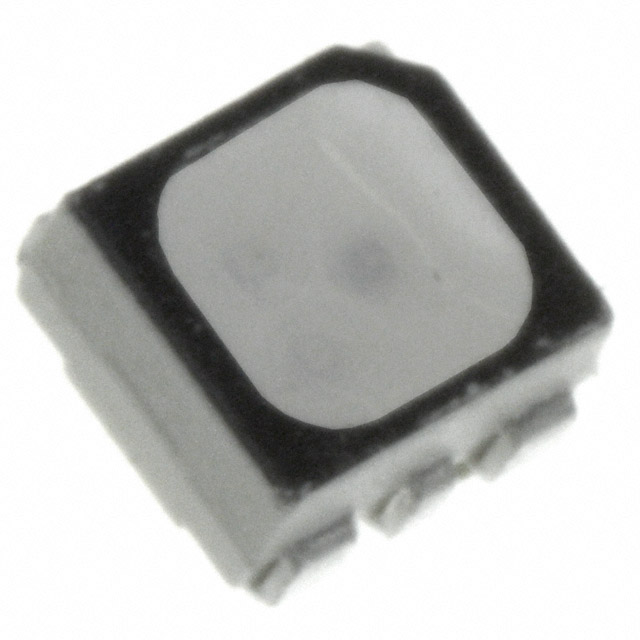

| Part Number | OVSTRGBB1CR8 | OVSTRGBBCR8 | OVSTRGBFC6 | OVSTKGBBCR9 |
| Manufacturer | TT Electronics/Optek Technology | TT Electronics/Optek Technology | TT Electronics/Optek Technology | TT Electronics/Optek Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | LED RGB DIFFUSED 6PLCC SMD | LED RGB CLEAR 6PLCC SMD | LED RGB CLEAR CHIP SMD | LED BLUE/GREEN/ORG CLR CHIP SMD |
| Series | TT Electronics/Optek Technology | TT Electronics/Optek Technology | TT Electronics/Optek Technology | TT Electronics/Optek Technology |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
