Product CatalogPart Number
P0177NL
Manufacturer
Pulse ElectronicsDescription
INDUCT ARRAY 2 COIL 10.4UH SMD
Datasheet
DatasheetPackage
Nonstandard
In Stock
22,298 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
P0177NL
P0177NL

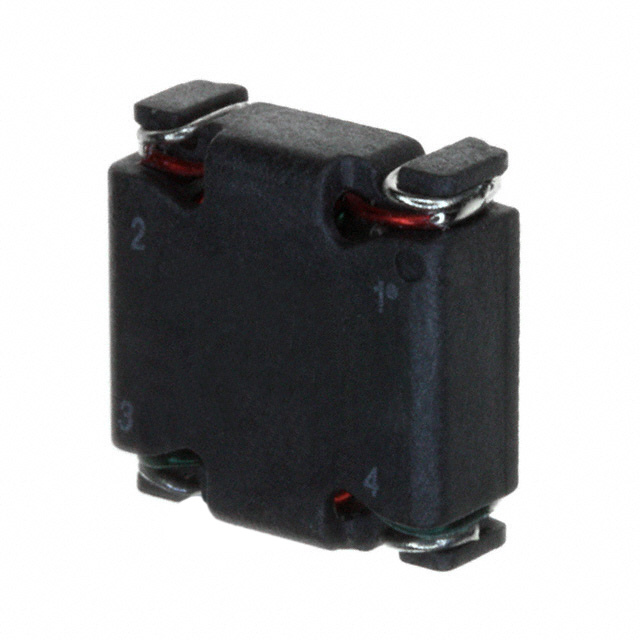

lmages are for reference only.Payment Methods
Delivery Services
Unshielded 2 Coil Inductor Array 41.7 µH Inductance - Connected in Series 10.4 µH Inductance - Connected in Parallel 29.8mOhm Max DC Resistance (DCR) - Parallel 3.8 A Nonstandard
Quick Inquiry
P0177NL
Specifications
| Category | Inductors, Coils, Chokes - Arrays-Signal Transformers - |
| Manufacturer | Pulse Electronics |
| Series | Polecat |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 10.4 µH |
| Inductance - Connected In Series | 41.7 µH |
| Tolerance | ±10% |
| Current Rating - Parallel | 3.8 A |
| Current Rating - Series | 1.89 A |
| Current Saturation - Parallel | - |
| Current Saturation - Series | - |
| DC Resistance (DCR) - Parallel | 29.8mOhm Max |
| DC Resistance (DCR) - Series | 120mOhm Max |
| Shielding | Unshielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Height | 0.215" (5.46mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
 |
|
 |
| Part Number | P0177NL | P0177NLT | P0177NLT | P0174NL |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | INDUCT ARRAY 2 COIL 10.4UH SMD | INDUCT ARRAY 2 COIL 10.4UH SMD | INDUCT ARRAY 2 COIL 10.4UH SMD | INDUCT ARRAY 2 COIL 2.2UH SMD |
| Series | Polecat | Polecat | Polecat | Polecat |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
