SURFACE MOUNT TRANSIENT VOLTAGE
DatasheetSC-90, SOD-323F
11,044 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services

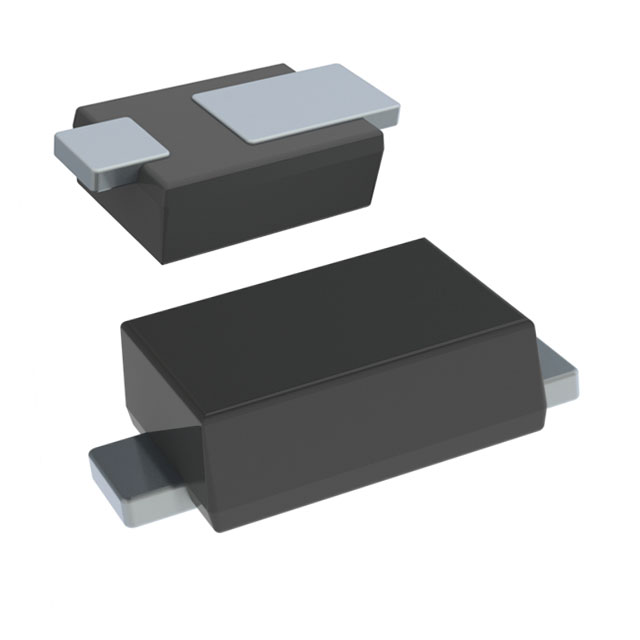

8.5V Clamp 17.6A Ipp Tvs Diode Surface Mount SOD-323HE
P1CH3.3A-AU_R1_000A1
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Panjit International Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 3.3V |
| Voltage - Breakdown (Min) | 5.2V |
| Voltage - Clamping (Max) @ Ipp | 8.5V |
| Current - Peak Pulse (10/1000µs) | 17.6A |
| Power - Peak Pulse | 150W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-90, SOD-323F |
| Supplier Device Package | SOD-323HE |
| Base Product Number | P1CH3.3 |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |
| Part Number | P1CH3.3A_R1_00001 | P1CH30A-AU_R1_000A1 | P1CH30A_R1_00001 | P1CH33A-AU_R1_000A1 |
| Manufacturer | Panjit International Inc. | Panjit International Inc. | Panjit International Inc. | Panjit International Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SURFACE MOUNT TRANSIENT VOLTAGE | SURFACE MOUNT TRANSIENT VOLTAGE | SURFACE MOUNT TRANSIENT VOLTAGE | SURFACE MOUNT TRANSIENT VOLTAGE |
| Series | Panjit International Inc. | Panjit International Inc. | Panjit International Inc. | Panjit International Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
