P3500EARP2

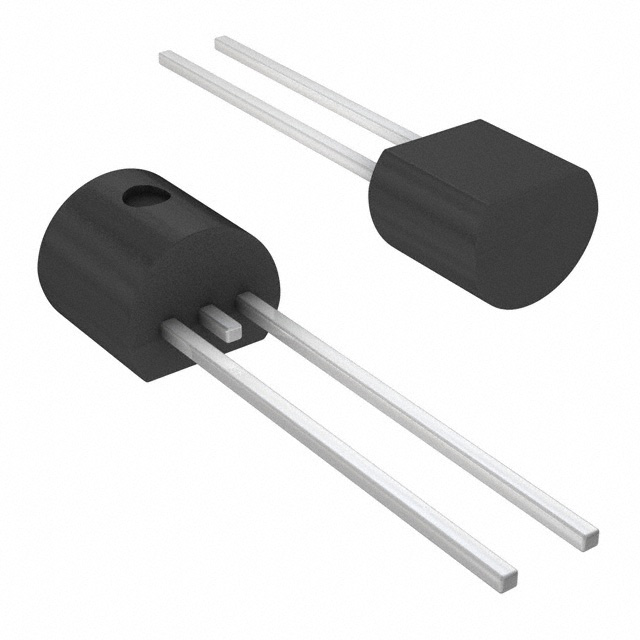

lmages are for reference only.P3500EARP2
THYRISTOR 320V 150A TO226-2
DatasheetTO-226-2, TO-92-2 (TO-226AC) Formed Leads
81,482 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
320V Off-State 150 A Ipp TVS Thyristor TO-226-2, TO-92-2 (TO-226AC) Formed Leads
P3500EARP2
| Category | Circuit Protection - Transient Voltage Suppressors TVS - Thyristors |
| Manufacturer | Littelfuse Inc. |
| Series | SIDACtor® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| Voltage - Breakover | 400V |
| Voltage - Off State | 320V |
| Voltage - On State | 4 V |
| Current - Peak Pulse (8/20µs) | 150 A |
| Current - Peak Pulse (10/1000µs) | 45 A |
| Current - Hold (Ih) | 150 mA |
| Number of Elements | 1 |
| Capacitance | 35pF |
| Mounting Type | Through Hole |
| Package / Case | TO-226-2, TO-92-2 (TO-226AC) Formed Leads |
| Supplier Device Package | TO-92-2 |
| Base Product Number | P3500 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
|
| Part Number | P3500EARP1 | P3500EARP1 | P3500EARP1 | P3500EARP2 |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | THYRISTOR 320V 150A TO226-2 | THYRISTOR 320V 150A TO226-2 | THYRISTOR 320V 150A TO226-2 | THYRISTOR 320V 150A TO226-2 |
| Series | SIDACtor® | SIDACtor® | SIDACtor® | SIDACtor® |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
