P4KE250C_R2_00001
lmages are for reference only.P4KE250C_R2_00001
GLASS PASSIVATED JUNCTION TRANSI
DatasheetDO-204AL, DO-41, Axial
79,774 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
360V Clamp 1.1A Ipp Tvs Diode Through Hole DO-41
P4KE250C_R2_00001
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Panjit International Inc. |
| Series | P4KE |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 202V |
| Voltage - Breakdown (Min) | 225V |
| Voltage - Clamping (Max) @ Ipp | 360V |
| Current - Peak Pulse (10/1000µs) | 1.1A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-41 |
| Base Product Number | P4KE250 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|

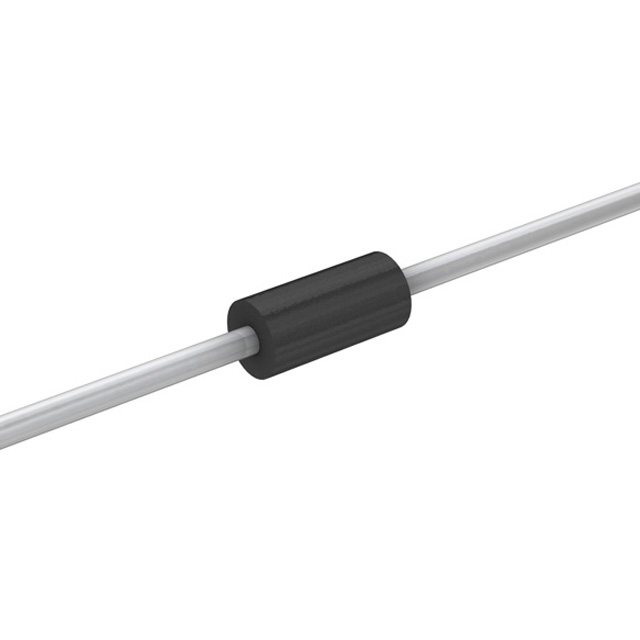

| Part Number | P4KE250 | P4KE250 | P4KE250-B | P4KE250-E3/54 |
| Manufacturer | Taiwan Semiconductor Corporation | Littelfuse Inc. | Littelfuse Inc. | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | 400W, 250V, UNIDIRECTIONAL, TVS | TVS DO15 202V 400W UNIDIR | TVS DIODE 214VWM 361.2VC DO204AL | TVS DIODE 202VWM 360VC DO204AL |
| Series | Taiwan Semiconductor Corporation | Littelfuse Inc. | Littelfuse Inc. | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Tape & Reel (TR) |
