P4KE33CA_R2_00001
lmages are for reference only.P4KE33CA_R2_00001
GLASS PASSIVATED JUNCTION TRANSI
DatasheetDO-204AL, DO-41, Axial
56,526 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
45.7V Clamp 9A Ipp Tvs Diode Through Hole DO-41
P4KE33CA_R2_00001
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Panjit International Inc. |
| Series | P4KE |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 28.2V |
| Voltage - Breakdown (Min) | 31.4V |
| Voltage - Clamping (Max) @ Ipp | 45.7V |
| Current - Peak Pulse (10/1000µs) | 9A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-41 |
| Base Product Number | P4KE33 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |

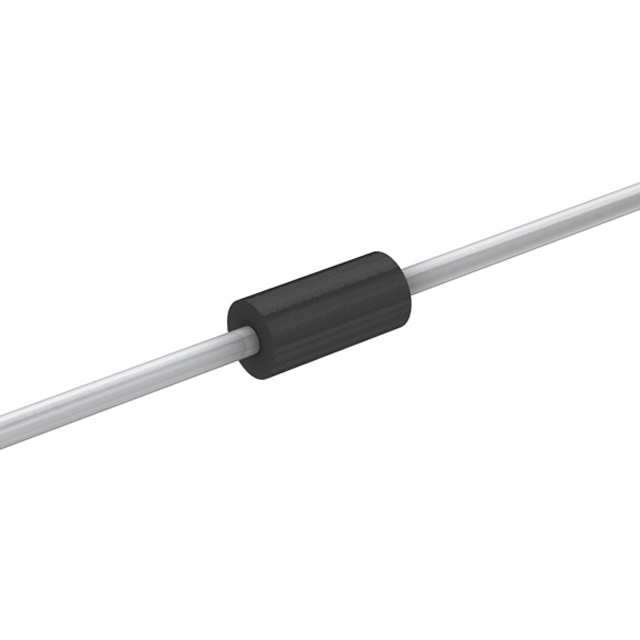

| Part Number | P4KE33C | P4KE33C | P4KE33C-B | P4KE33C-E3/54 |
| Manufacturer | Littelfuse Inc. | Taiwan Semiconductor Corporation | Littelfuse Inc. | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DO15 26.8V 400W BIDIR | 400W, 33V, BIDIRECTIONAL, TVS | TVS DIODE 28.2VWM 47.99V DO204AL | TVS DIODE 26.8VWM 47.7VC DO204AL |
| Series | Littelfuse Inc. | Taiwan Semiconductor Corporation | Littelfuse Inc. | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Tape & Reel (TR) |
