Product CatalogPart Number
P4KE91A
Manufacturer
Littelfuse Inc.Description
TVS DO15 77.8V 400W UNIDIR
Datasheet
DatasheetPackage
DO-204AL, DO-41, Axial
In Stock
43,643 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

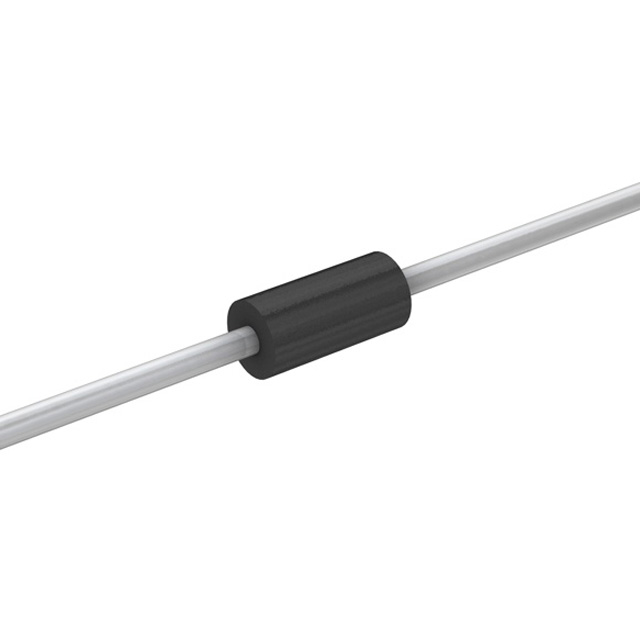

P4KE91A
P4KE91A
lmages are for reference only.Payment Methods
Delivery Services
125V Clamp 3.3A Ipp Tvs Diode Through Hole DO-204AL (DO-41)
Quick Inquiry
P4KE91A
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Littelfuse Inc. |
| Series | P4KE |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 77.8V |
| Voltage - Breakdown (Min) | 86.5V |
| Voltage - Clamping (Max) @ Ipp | 125V |
| Current - Peak Pulse (10/1000µs) | 3.3A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-204AL (DO-41) |
| Base Product Number | P4KE91 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
|
| Part Number | P4KE91 | P4KE91 | P4KE91-B | P4KE91A |
| Manufacturer | Taiwan Semiconductor Corporation | Littelfuse Inc. | Littelfuse Inc. | SMC Diode Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | 400W, 91V, UNIDIRECTIONAL, TVS | TVS DO15 73.7V 400W UNIDIR | TVS DIODE 77.8VWM 131.25VC DO204 | TVS DIODE 73.7VWM 125VC DO41 |
| Series | Taiwan Semiconductor Corporation | Littelfuse Inc. | Littelfuse Inc. | SMC Diode Solutions |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Tape & Reel (TR) |
