P4SMA33CA-AU_R1_000A1

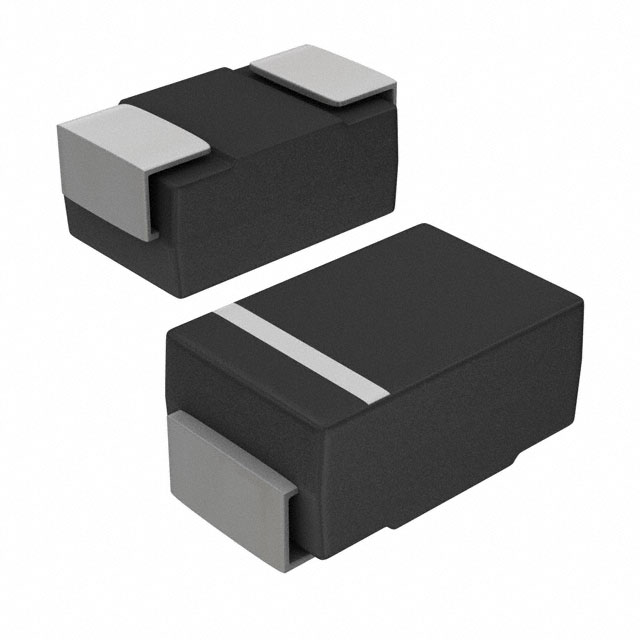

lmages are for reference only.P4SMA33CA-AU_R1_000A1
SURFACE MOUNT TRANSIENT VOLTAGE
DatasheetDO-214AC, SMA
18,509 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
45.7V Clamp 9A Ipp Tvs Diode Surface Mount DO-214AC (SMA)
P4SMA33CA-AU_R1_000A1
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Panjit International Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 28.2V |
| Voltage - Breakdown (Min) | 31.4V |
| Voltage - Clamping (Max) @ Ipp | 45.7V |
| Current - Peak Pulse (10/1000µs) | 9A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Base Product Number | P4SMA33 |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
|
| Part Number | P4SMA33CA-AT/TR13 | P4SMA33CA-AT/TR7 | P4SMA30 | P4SMA30 |
| Manufacturer | YAGEO | YAGEO | Taiwan Semiconductor Corporation | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DO214AC 28.2V 45.7V AU | TVS DO214AC 28.2V 45.7V AU | 400W, 30V, 10%, UNIDIRECTIONAL, | TVS DIODE 25.6VWM 43.47VC DO214 |
| Series | YAGEO | YAGEO | Taiwan Semiconductor Corporation | Littelfuse Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
