P4SMAJ110CA

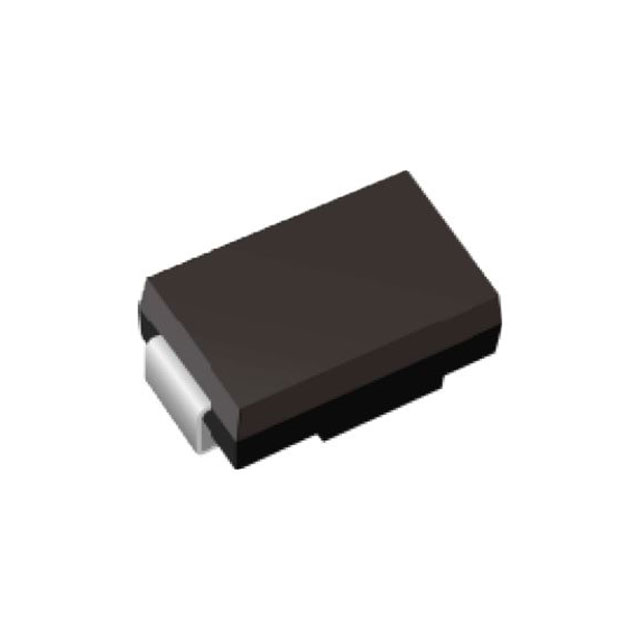

lmages are for reference only.P4SMAJ110CA
TVS DIODE 110VWM 177VC DO-214AC
DatasheetDO-214AC, SMA
25,507 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
177V Clamp 2.3A Ipp Tvs Diode Surface Mount DO-214AC (SMA)
P4SMAJ110CA
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 110V |
| Voltage - Breakdown (Min) | 122V |
| Voltage - Clamping (Max) @ Ipp | 177V |
| Current - Peak Pulse (10/1000µs) | 2.3A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | P4SMAJ110C | P4SMAJ110CAS_R1_00001 | P4SMAJ110CA_R1_00001 | P4SMAJ110C_R1_00001 |
| Manufacturer | Diotec Semiconductor | Panjit International Inc. | Panjit International Inc. | Panjit International Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 110VWM 196VC DO-214AC | SURFACE MOUNT TRANSIENT VOLTAGE | SURFACE MOUNT TRANSIENT VOLTAGE | SURFACE MOUNT TRANSIENT VOLTAGE |
| Series | Diotec Semiconductor | Panjit International Inc. | Panjit International Inc. | Panjit International Inc. |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
