P4SMAJ12A-AQ
lmages are for reference only.P4SMAJ12A-AQ
TVS DIODE 12VWM 19.9VC DO-214AC
DatasheetDO-214AC, SMA
42,901 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
19.9V Clamp 20.1A Ipp Tvs Diode Surface Mount DO-214AC (SMA)
P4SMAJ12A-AQ
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 12V |
| Voltage - Breakdown (Min) | 13.3V |
| Voltage - Clamping (Max) @ Ipp | 19.9V |
| Current - Peak Pulse (10/1000µs) | 20.1A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute | |
 |
 |
 |
| Part Number | P4SMAJ12A-AU_R1_000A1 | P4SMAJ12A | P4SMAJ12ADF-13 | P4SMAJ12AS_R1_00001 |
| Manufacturer | Panjit International Inc. | Diotec Semiconductor | Diodes Incorporated | Panjit International Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

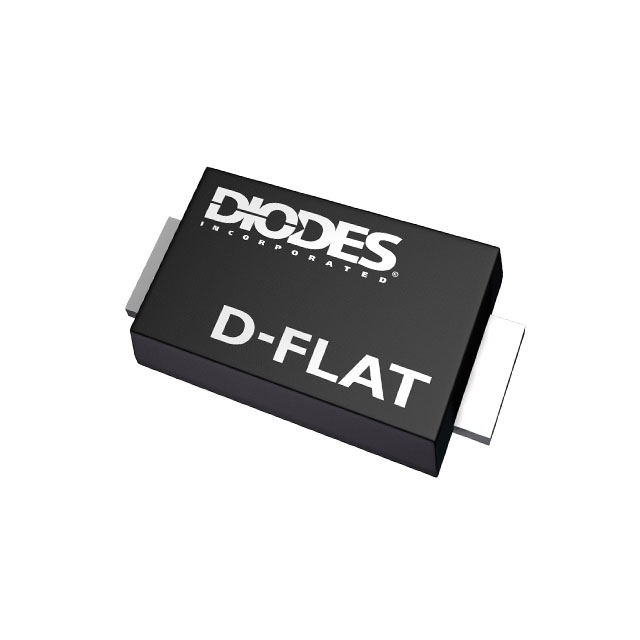

| Description | SURFACE MOUNT TRANSIENT VOLTAGE | TVS SMA 12V 400W UNIDIR | TVS DIODE 12VWM 19.9VC D-FLAT | SURFACE MOUNT TRANSIENT VOLTAGE |
| Series | Panjit International Inc. | Diotec Semiconductor | Diodes Incorporated | Panjit International Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
