P4SMAJ130CA

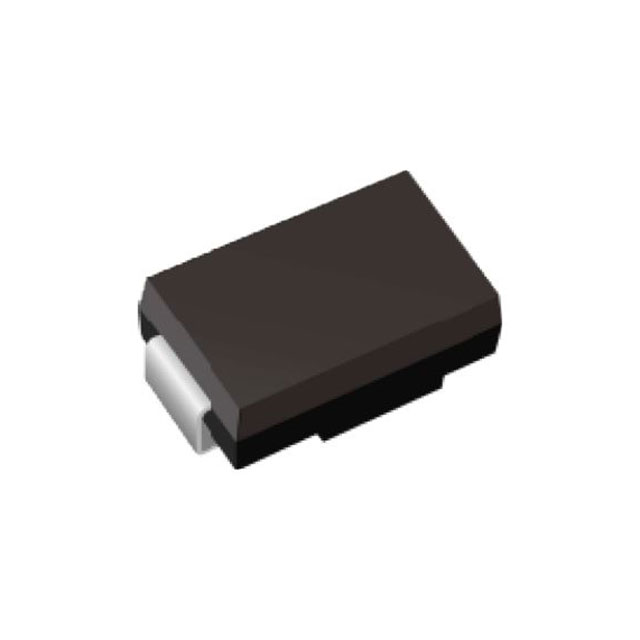

lmages are for reference only.P4SMAJ130CA
TVS DIODE 130VWM 209VC DO-214AC
DatasheetDO-214AC, SMA
40,427 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
209V Clamp 1.9A Ipp Tvs Diode Surface Mount DO-214AC (SMA)
P4SMAJ130CA
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 130V |
| Voltage - Breakdown (Min) | 144V |
| Voltage - Clamping (Max) @ Ipp | 209V |
| Current - Peak Pulse (10/1000µs) | 1.9A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | P4SMAJ130C | P4SMAJ130CAS_R1_00001 | P4SMAJ130CA_R1_00001 | P4SMAJ13 |
| Manufacturer | Diotec Semiconductor | Panjit International Inc. | Panjit International Inc. | Diotec Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | TVS DIODE 130VWM 231VC DO-214AC | SURFACE MOUNT TRANSIENT VOLTAGE | SURFACE MOUNT TRANSIENT VOLTAGE | TVS DIODE 13VWM 23.8VC DO-214AC |
| Series | Diotec Semiconductor | Panjit International Inc. | Panjit International Inc. | Diotec Semiconductor |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
