P4SMAJ210CA_R1_00001

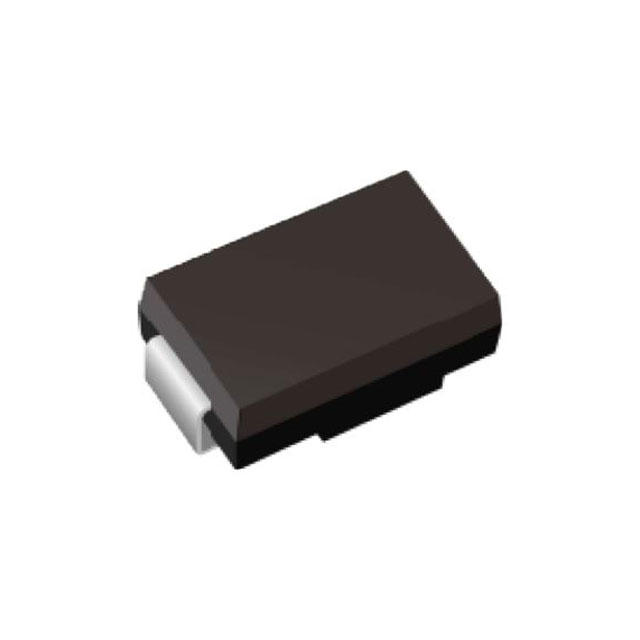

lmages are for reference only.P4SMAJ210CA_R1_00001
SURFACE MOUNT TRANSIENT VOLTAGE
DatasheetDO-214AC, SMA
86,929 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
340V Clamp 1.2A Ipp Tvs Diode Surface Mount DO-214AC (SMA)
P4SMAJ210CA_R1_00001
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Panjit International Inc. |
| Series | P4SMAJ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 210V |
| Voltage - Breakdown (Min) | 231V |
| Voltage - Clamping (Max) @ Ipp | 340V |
| Current - Peak Pulse (10/1000µs) | 1.2A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Base Product Number | P4SMAJ210 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | P4SMAJ210CAS_R1_00001 | P4SMAJ210C_R1_00001 | P4SMA10 | P4SMA10 |
| Manufacturer | Panjit International Inc. | Panjit International Inc. | Littelfuse Inc. | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SURFACE MOUNT TRANSIENT VOLTAGE | SURFACE MOUNT TRANSIENT VOLTAGE | TVS DIODE 8.55VWM 15.23VC DO214 | 400W, 10V, 10%, UNIDIRECTIONAL, |
| Series | Panjit International Inc. | Panjit International Inc. | Littelfuse Inc. | Taiwan Semiconductor Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
