P4SMAJ43A-AQ

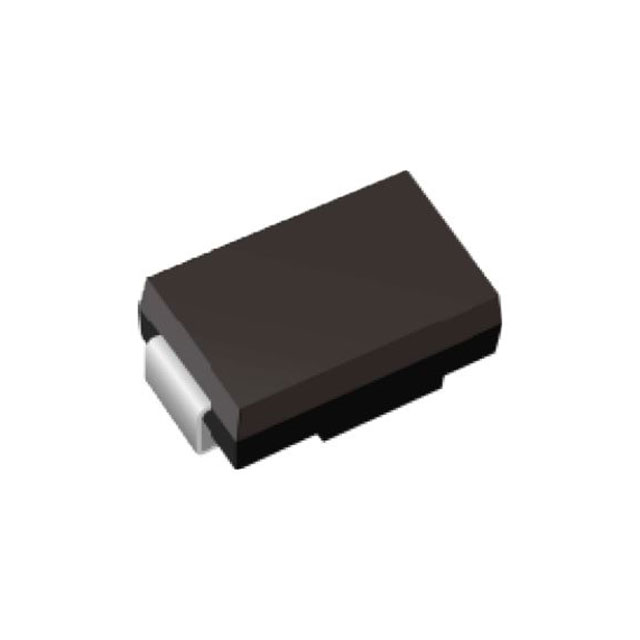

lmages are for reference only.P4SMAJ43A-AQ
TVS DIODE 43VWM 69.4VC DO-214AC
DatasheetDO-214AC, SMA
86,657 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
69.4V Clamp 5.8A Ipp Tvs Diode Surface Mount DO-214AC (SMA)
P4SMAJ43A-AQ
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 43V |
| Voltage - Breakdown (Min) | 47.8V |
| Voltage - Clamping (Max) @ Ipp | 69.4V |
| Current - Peak Pulse (10/1000µs) | 5.8A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
|
 |
| Part Number | P4SMAJ43A | P4SMAJ43ADF-13 | P4SMAJ43AS_R1_00001 | P4SMAJ43A_R1_00001 |
| Manufacturer | Diotec Semiconductor | Diodes Incorporated | Panjit International Inc. | Panjit International Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS SMA 150DEG 43V 400W UNIDIR | TRANSIENT VOLTAGE SUPPRESSOR D-F | SURFACE MOUNT TRANSIENT VOLTAGE | SURFACE MOUNT TRANSIENT VOLTAGE |
| Series | Diotec Semiconductor | Diodes Incorporated | Panjit International Inc. | Panjit International Inc. |
| Packaging | Cut Tape (CT)-->Bulk | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
