P4SMAJ60A-AQ

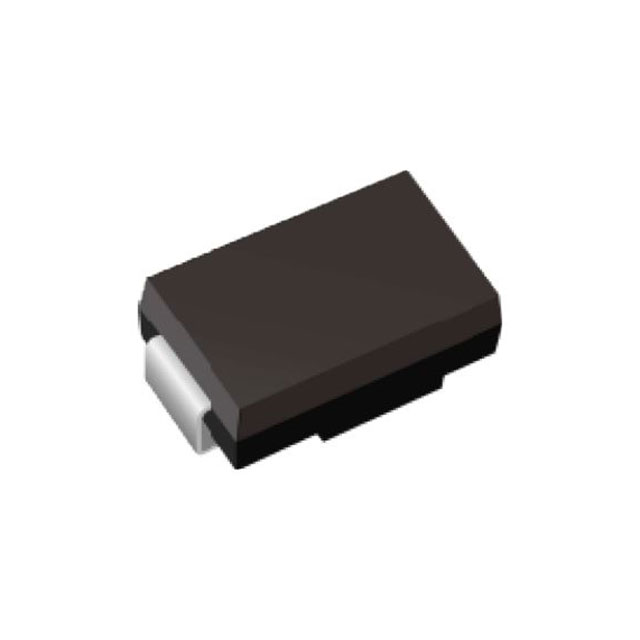

lmages are for reference only.P4SMAJ60A-AQ
TVS DIODE 60VWM 96.8VC DO-214AC
DatasheetDO-214AC, SMA
57,465 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
96.8V Clamp 4.1A Ipp Tvs Diode Surface Mount DO-214AC (SMA)
P4SMAJ60A-AQ
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 60V |
| Voltage - Breakdown (Min) | 66.7V |
| Voltage - Clamping (Max) @ Ipp | 96.8V |
| Current - Peak Pulse (10/1000µs) | 4.1A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
|
 |
 |
| Part Number | P4SMAJ60A | P4SMAJ60ADF-13 | P4SMAJ60AS_R1_00001 | P4SMAJ60A_R1_00001 |
| Manufacturer | Diotec Semiconductor | Diodes Incorporated | Panjit International Inc. | Panjit International Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS SMA 150DEG 60V 400W UNIDIR | TVS DIODE 60VWM 96.8VC D-FLAT | SURFACE MOUNT TRANSIENT VOLTAGE | SURFACE MOUNT TRANSIENT VOLTAGE |
| Series | Diotec Semiconductor | Diodes Incorporated | Panjit International Inc. | Panjit International Inc. |
| Packaging | Cut Tape (CT)-->Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
