Product CatalogPart Number
P50E-100P1-S1-EA
Manufacturer
3MDescription
CONN HEADER VERT 100POS 1.27MM
Datasheet
DatasheetPackage
-
In Stock
15,562 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
P50E-100P1-S1-EA
P50E-100P1-S1-EA
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Through Hole 100 position 0.050" (1.27mm)
Quick Inquiry
P50E-100P1-S1-EA
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | 3M |
| Series | Pak 50, P50E |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Plug |
| Contact Type | Center Strip Contact |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 100 |
| Number of Rows | 2 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.118" (3.00mm) |
| Overall Contact Length | - |
| Insulation Height | 0.421" (10.70mm) |
| Contact Shape | - |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Features | - |
| Operating Temperature | -55°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 0.5A |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | Flash |
| Applications | - |
| Base Product Number | P50E |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
|

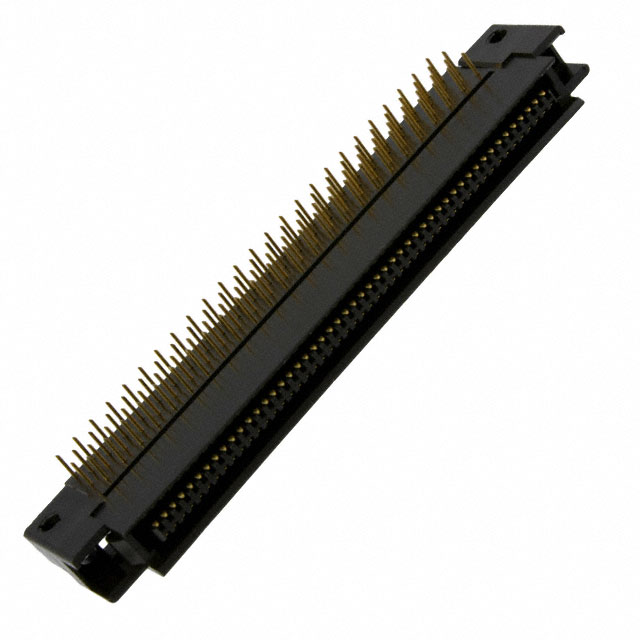

| Part Number | P50E-100P1-S1-TGF | P50E-100P1-RR1-EA | P50E-100P1-SR1-EA | P50E-100P1-SR1-TGF |
| Manufacturer | 3M | 3M | 3M | 3M |
| RoHS Status | RoHS non-compliant | RoHS Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | CONN HEADER VERT 100POS 1.27MM | CONN HEADER R/A 100P 1.27MM | CONN HEADER R/A 100P 1.27MM | CONN HEADER R/A 100P 1.27MM |
| Series | Pak 50, P50E | Pak 50, P50E | Pak 50, P50E | Pak 50, P50E |
| Packaging | Bulk | Bulk | Tube | Bulk |
Customers Also Interested in
Recommended Products

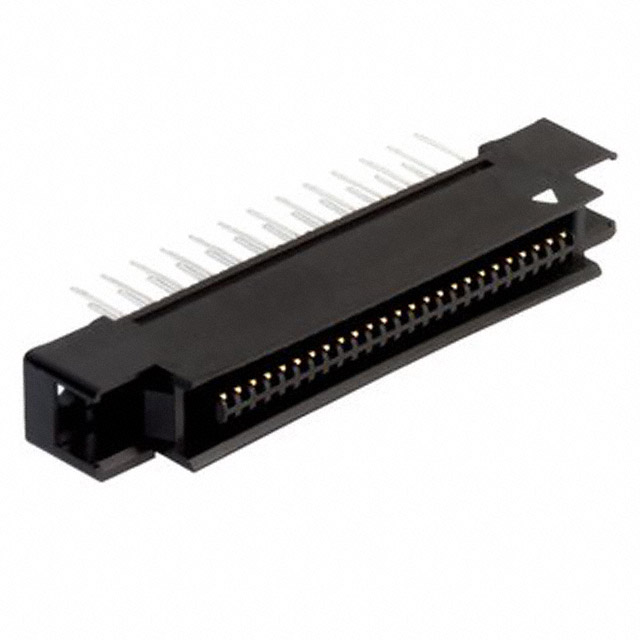

P50E-020P1-RR1-TG
3M

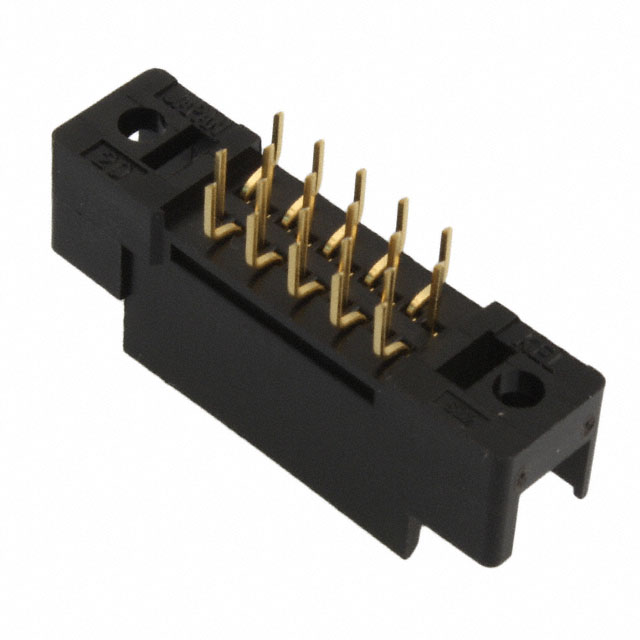

P50E-020P1-S1-EA
3M
P50E-020P1-SR1-EA
3M
P50E-020P1-SR1-TG
3M
P50E-026P1-RR1-EA
3M

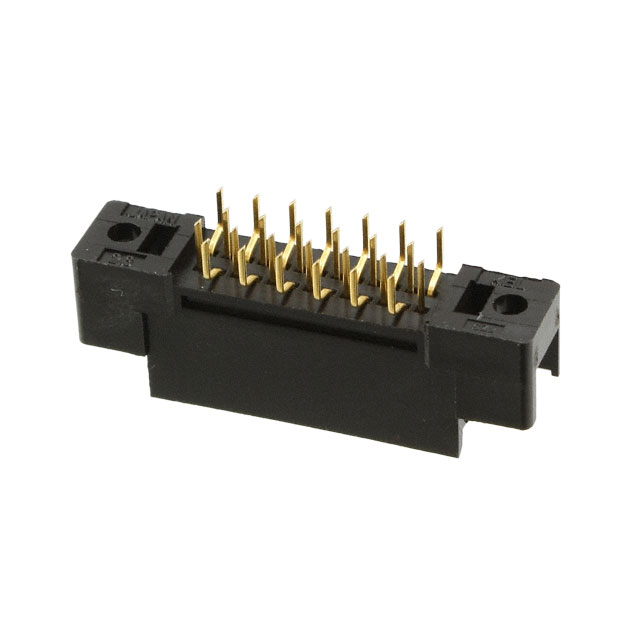

P50E-026P1-S1-EA
3M
P50E-026P1-S1-TG
3M

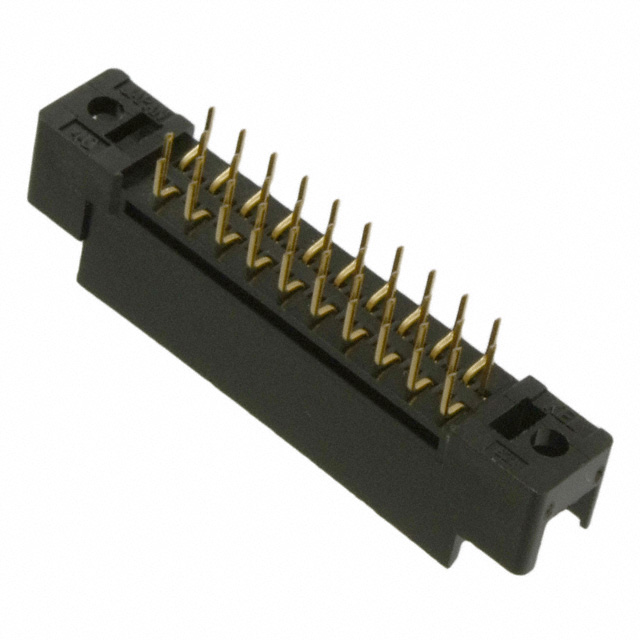

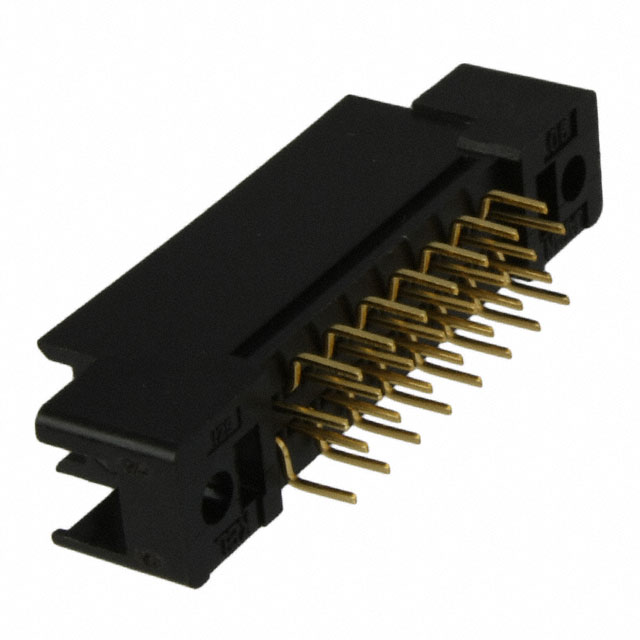

P50E-030P1-S1-EA
3M

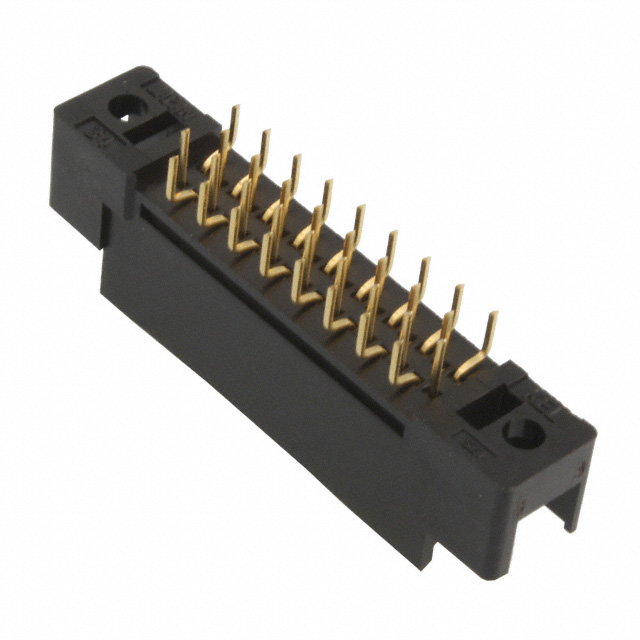

P50E-034P1-S1-EA
3M

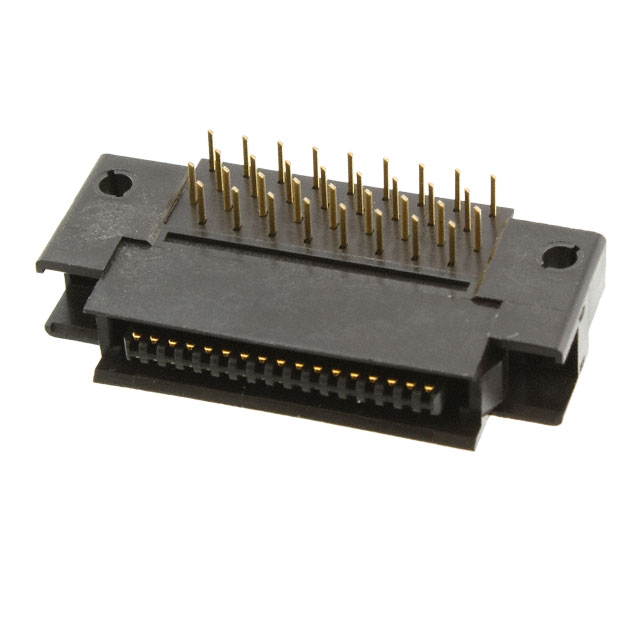

P50E-034P1-SR1-EA
3M
P50E-034P1-SR1-TG
3M
P50E-040P1-RR1-TG
3M
P50E-040P1-S1-EA
3M

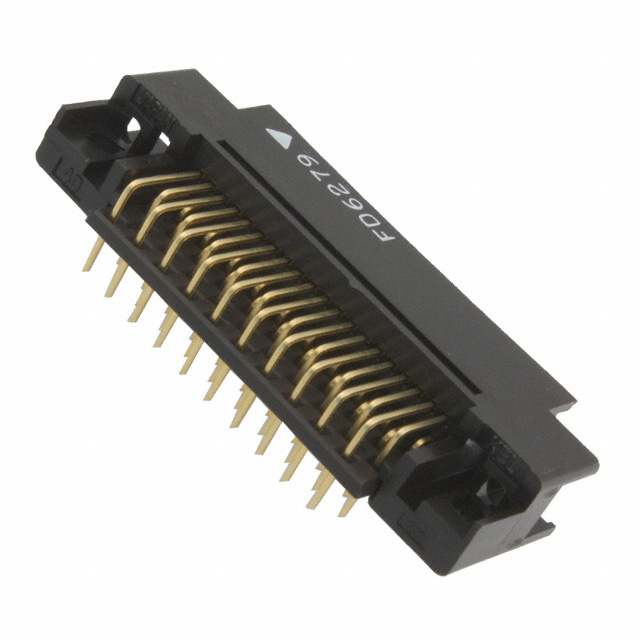

P50E-040P1-SR1-EA
3M
P50E-040P1-SR1-TG
3M
P50E-050P1-RR1-EA
3M

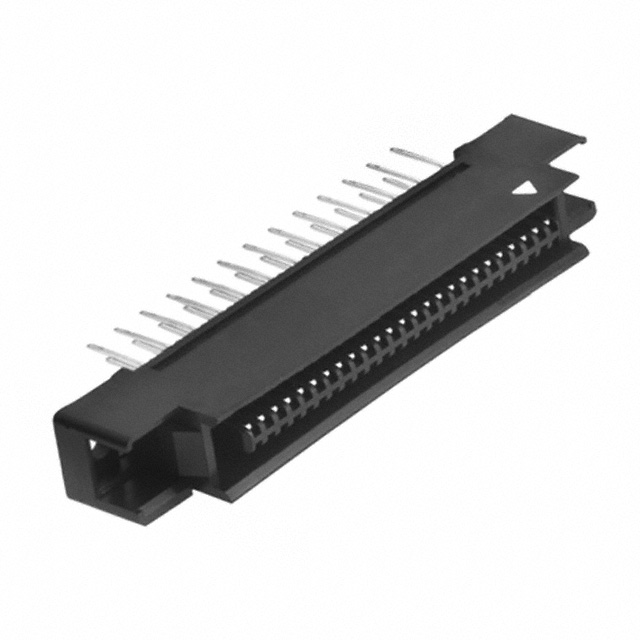

P50E-050P1-S1-EA
3M

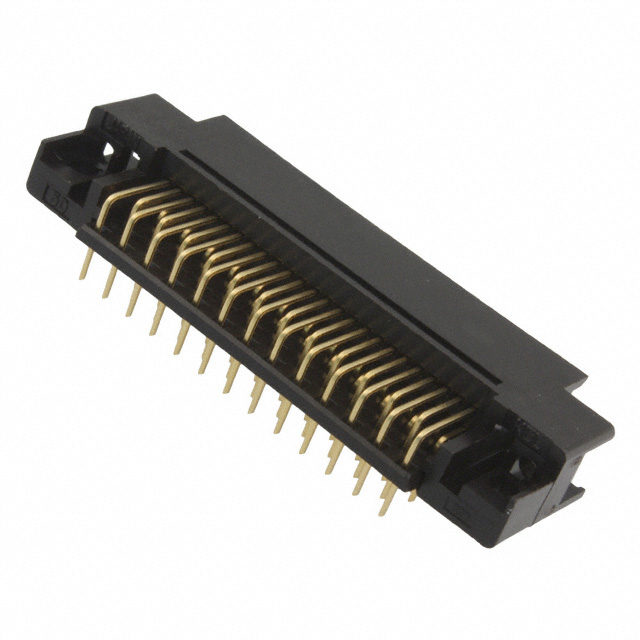

P50E-050P1-SR1-EA
