P6KE36CAHE3/54

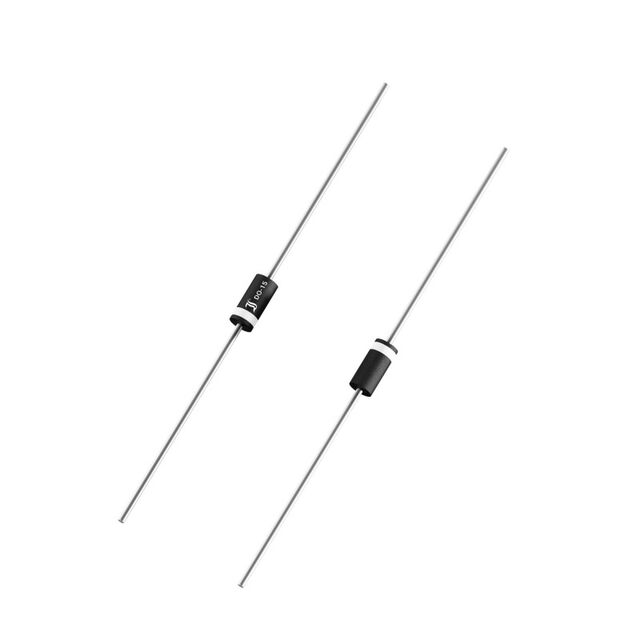

lmages are for reference only.P6KE36CAHE3/54
TVS DIODE 30.8VWM 49.9VC DO204AC
DatasheetDO-204AC, DO-15, Axial
55,903 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
49.9V Clamp 12A Ipp Tvs Diode Through Hole DO-204AC (DO-15)
P6KE36CAHE3/54
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | TransZorb® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 30.8V |
| Voltage - Breakdown (Min) | 34.2V |
| Voltage - Clamping (Max) @ Ipp | 49.9V |
| Current - Peak Pulse (10/1000µs) | 12A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-204AC, DO-15, Axial |
| Supplier Device Package | DO-204AC (DO-15) |
| Base Product Number | P6KE36 |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
|
|
|
| Part Number | P6KE36CA | P6KE36CA | P6KE36CA | P6KE36CA |
| Manufacturer | Littelfuse Inc. | STMicroelectronics | Taiwan Semiconductor Corporation | Diotec Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 30.8VWM 49.9VC DO204AC | TVS DO15 30.8V 600W BIDIR | TVS DIODE 30.8VWM 49.9VC DO15 | TVS DIODE 30.8VWM 49.9VC DO204AC |
| Series | Littelfuse Inc. | STMicroelectronics | Taiwan Semiconductor Corporation | Diotec Semiconductor |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Cut Tape (CT)-->Tape & Box (TB) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
