P6SMB120

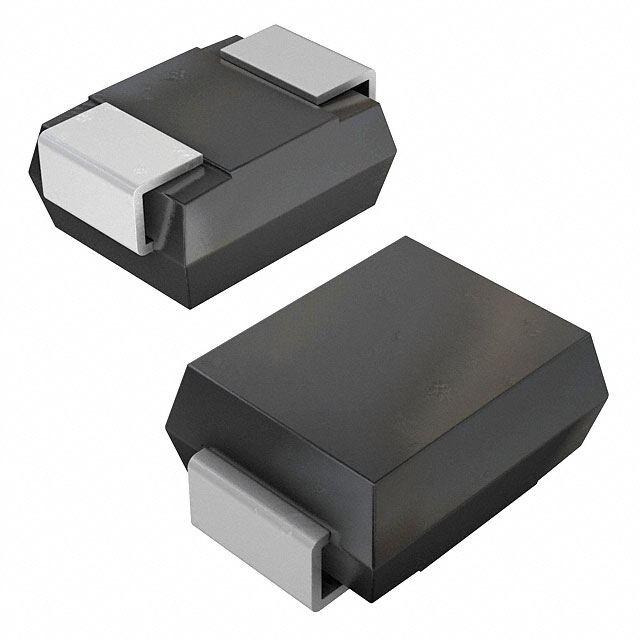

lmages are for reference only.P6SMB120
600W, 120V, 10%, UNIDIRECTIONAL,
DatasheetDO-214AA, SMB
39,979 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
173V Clamp 3.6A Ipp Tvs Diode Surface Mount DO-214AA (SMB)
P6SMB120
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | P6SMB |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 97.2V |
| Voltage - Breakdown (Min) | 108V |
| Voltage - Clamping (Max) @ Ipp | 173V |
| Current - Peak Pulse (10/1000µs) | 3.6A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMB) |
| Base Product Number | P6SMB120 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | P6SMB12 | P6SMB12 | P6SMB120 | P6SMB120A |
| Manufacturer | Littelfuse Inc. | Taiwan Semiconductor Corporation | Littelfuse Inc. | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 10.2VWM 17.54VC DO214 | 600W, 12V, 10%, UNIDIRECTIONAL, | TVS DIODE 102VWM 173.25VC DO214 | TVS DIODE 102VWM 165VC DO214AA |
| Series | Littelfuse Inc. | Taiwan Semiconductor Corporation | Littelfuse Inc. | Taiwan Semiconductor Corporation |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
