P6SMB20

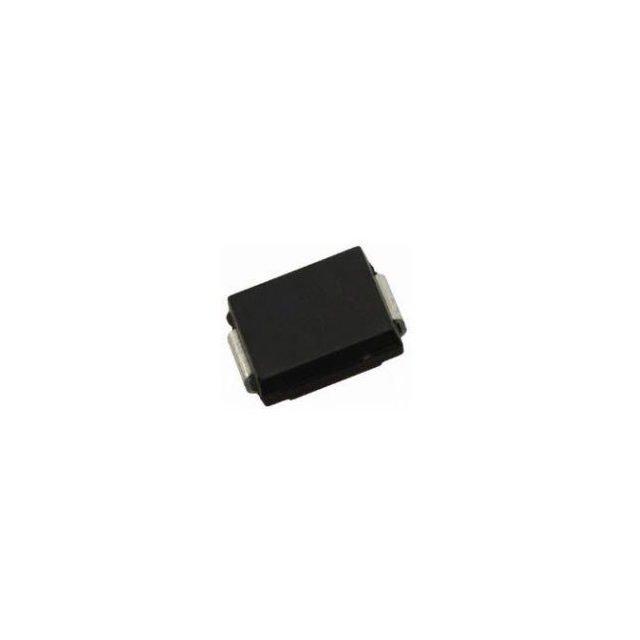

lmages are for reference only.P6SMB20
600W, 20V, 10%, UNIDIRECTIONAL,
DatasheetDO-214AA, SMB
34,056 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
29.1V Clamp 21A Ipp Tvs Diode Surface Mount DO-214AA (SMB)
P6SMB20
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | P6SMB |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 16.2V |
| Voltage - Breakdown (Min) | 18V |
| Voltage - Clamping (Max) @ Ipp | 29.1V |
| Current - Peak Pulse (10/1000µs) | 21A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMB) |
| Base Product Number | P6SMB20 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | P6SMB20 | P6SMB200 | P6SMB200 | P6SMB200A |
| Manufacturer | Littelfuse Inc. | Taiwan Semiconductor Corporation | Littelfuse Inc. | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | TVS DIODE 17.1VWM 29.09VC DO214 | 600W, 200V, 10%, UNIDIRECTIONAL, | TVS DIODE 171VWM 287.7VC DO214AA | TVS DIODE 171VWM 274VC SMB |
| Series | Littelfuse Inc. | Taiwan Semiconductor Corporation | Littelfuse Inc. | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
