Product CatalogPart Number
PA4301.272NLT
Manufacturer
Pulse ElectronicsDescription
FIXED IND 2.7UH 2.84A 27.3 MOHM
Datasheet
DatasheetPackage
Nonstandard
In Stock
21,547 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PA4301.272NLT
PA4301.272NLT
lmages are for reference only.Payment Methods
Delivery Services
2.7 µH Shielded Drum Core, Wirewound Inductor 2.84 A 27.3mOhm Max Nonstandard
Quick Inquiry
PA4301.272NLT
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Pulse Electronics |
| Series | PA4301.XXXNLT |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.7 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 2.84 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 27.3mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.283" L x 0.283" W (7.20mm x 7.20mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
 |
|
 |

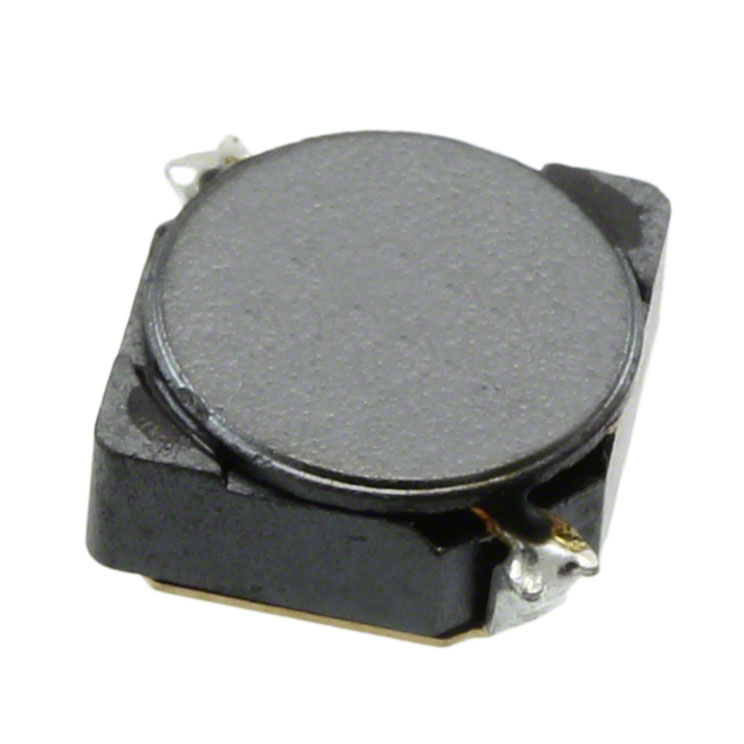

| Part Number | PA4301.272NLT | PA4301.102NLT | PA4301.103NLT | PA4301.104NLT |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 2.7UH 2.84A 27.3 MOHM | FIXED IND 1UH 3.6A 18.2 MOHM SMD | FIXED IND 10UH 1.6A 75.4MOHM SMD | FIXED IND 100UH 520MA 507MOHM SM |
| Series | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
PA4300.102NLT
Pulse Electronics
PA4300.103NLT
Pulse Electronics
PA4300.104NLT
Pulse Electronics
PA4300.122NLT
Pulse Electronics
PA4300.123NLT
Pulse Electronics
PA4300.124NLT
Pulse Electronics
PA4300.124NLT
Pulse Electronics

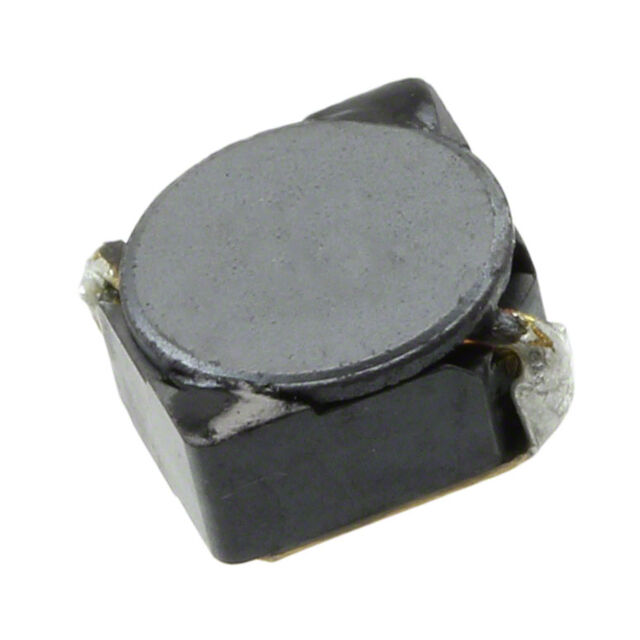

PA4300.153NLT
