PAQ-29/5-D48N-C

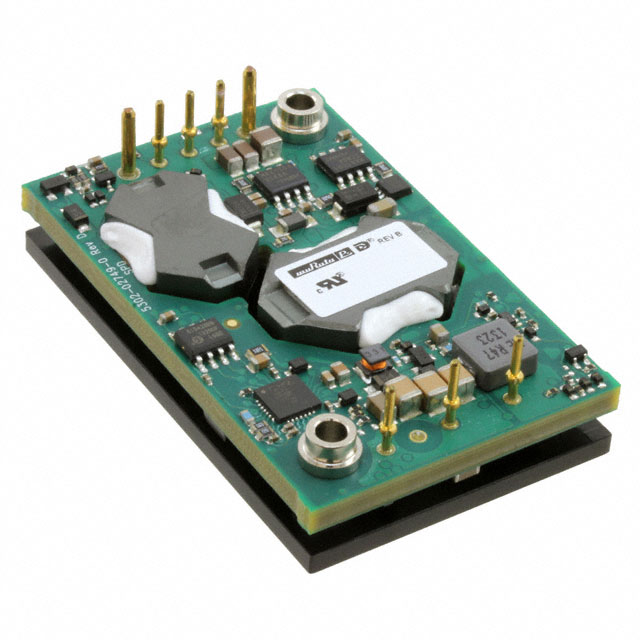

lmages are for reference only.PAQ-29/5-D48N-C
DC DC CONVERTER 29.8V 150W
Datasheet9-DIP Module
52,437 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 29.8V 5A 36V - 75V Input
PAQ-29/5-D48N-C
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | PAQ (150W) |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 29.8V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 5A |
| Power (Watts) | 150 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 92.5% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 9-DIP Module |
| Size / Dimension | 2.30" L x 1.45" W x 0.46" H (58.4mm x 36.8mm x 11.7mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | PAQ-29 |
| Voltage - Isolation | 2.25 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | PAQ-29/5-D48NB-C | PAQ-29/5-D48NB3-C | PAQ-29/5-D48PB3-C | 4AA12-P4-25PPM-M-E |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | ULTRAVOLT / Advanced Energy |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 29.8V 150W | DC DC CONVERTER 29.8V 150W | DC DC CONVERTER 29.8V 150W | DC/DC CONVERTER |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | ULTRAVOLT / Advanced Energy |
| Packaging | Tray | Tray | Tray | Bulk |
