Product CatalogPart Number
PAQ100S48-1R2/BPV
Manufacturer
TDK-LambdaDescription
DC DC CONVERTER 1.2V 30W
Datasheet
DatasheetPackage
8-DIP Module, 1/4 Brick
In Stock
15,020 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PAQ100S48-1R2/BPV
PAQ100S48-1R2/BPV
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 1.2V 25A 36V - 76V Input
Quick Inquiry
PAQ100S48-1R2/BPV
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | TDK-Lambda |
| Series | PAQ100 |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 76V |
| Voltage - Output 1 | 1.2V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 25A |
| Power (Watts) | 30 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OVP |
| Operating Temperature | -40°C ~ 100°C |
| Efficiency | 80% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module, 1/4 Brick |
| Size / Dimension | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | PAQ100S48-1R2 | PAQ100S48-3R3 | PAQ100S48-3R3/B | PAQ100S48-5 |
| Manufacturer | TDK-Lambda | TDK-Lambda | TDK-Lambda | TDK-Lambda |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |

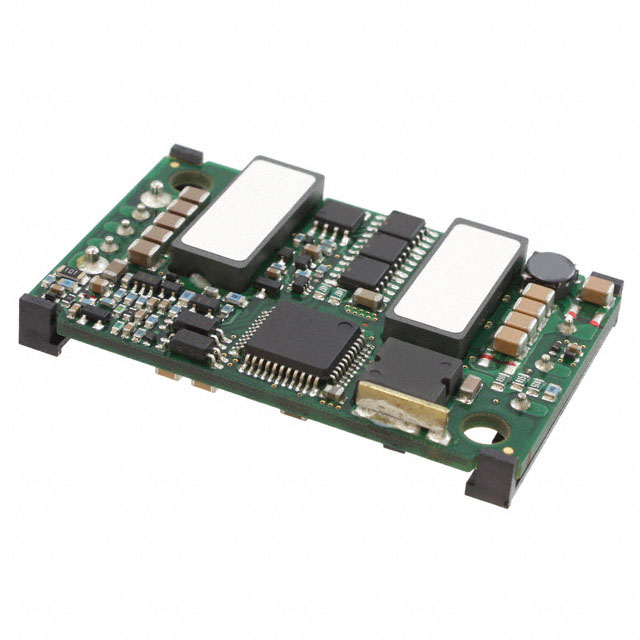

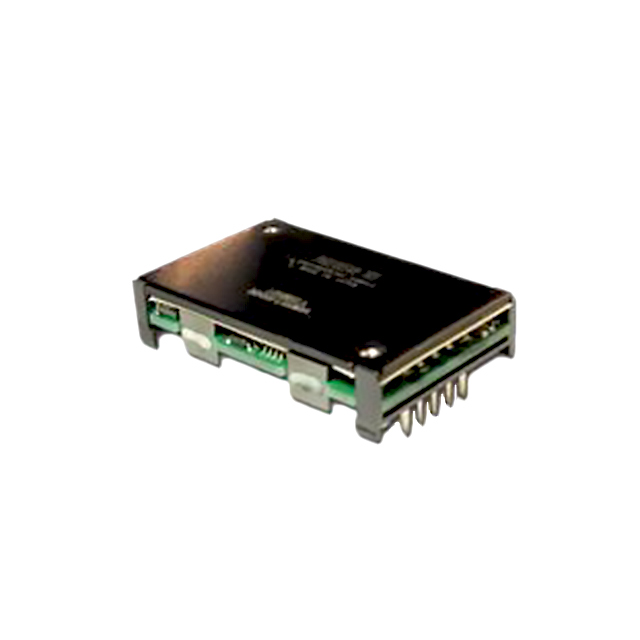

| Description | DC DC CONVERTER 1.2V 30W | DC DC CONVERTER 3.3V 83W | DC DC CONVERTER 3.3V 83W | DC DC CONVERTER 5V 100W |
| Series | TDK-Lambda | TDK-Lambda | TDK-Lambda | TDK-Lambda |
| Packaging | Bulk | Bulk | Bulk | Bulk |
