Product CatalogPart Number
PC02S2412A
Manufacturer
Delta ElectronicsDescription
DC DC CONVERTER 12V 2W
Datasheet
DatasheetPackage
6-SIP Module, 5 Leads
In Stock
40,332 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PC02S2412A
PC02S2412A
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 12V 165mA 21.6V - 26.4V Input
Quick Inquiry
PC02S2412A
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Delta Electronics |
| Series | PC02S/D (2W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 21.6V |
| Voltage - Input (Max) | 26.4V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 165mA |
| Power (Watts) | 2 W |
| Applications | Medical |
| Features | SCP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 81% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 6-SIP Module, 5 Leads |
| Size / Dimension | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | PC02S |
| Voltage - Isolation | 1 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

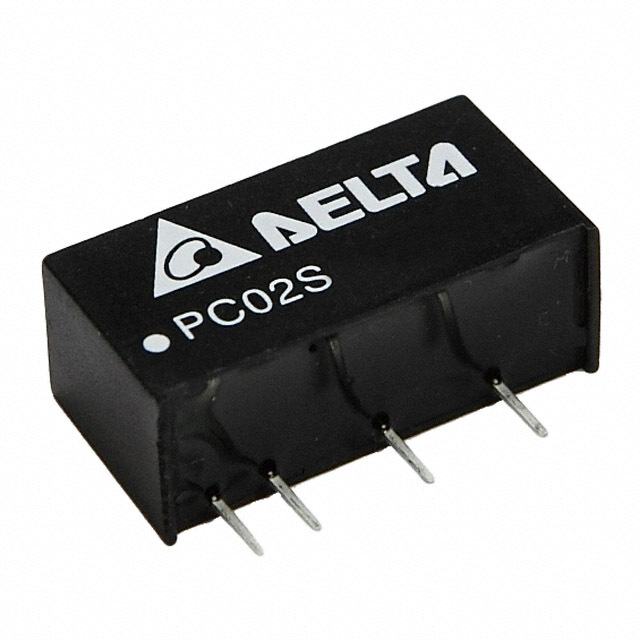

| Part Number | PC02S2403A | PC02S2405A | PC02S2415A | PC02D0505A |
| Manufacturer | Delta Electronics | Delta Electronics | Delta Electronics | Delta Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 3.3V 2W | DC DC CONVERTER 5V 2W | DC DC CONVERTER 15V 2W | DC DC CONVERTER +/-5V 2W |
| Series | Delta Electronics | Delta Electronics | Delta Electronics | Delta Electronics |
| Packaging | Tube | Tube | Tube | Tube |
