Product CatalogPart Number
PC312-24H-X
Manufacturer
Picker ComponentsDescription
RELAY TELECOM SPDT 3A 24V
Datasheet
DatasheetPackage
-
In Stock
53,123 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PC312-24H-X
PC312-24H-X
lmages are for reference only.Payment Methods
Delivery Services
Telecom Relay SPDT (1 Form C) 24VDC Coil Through Hole
Quick Inquiry
PC312-24H-X
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Picker Components |
| Series | PC312 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 3 A |
| Switching Voltage | 300VAC, 48VDC - Max |
| Load - Max Switching | 900VA, 144W |
| Coil Current | 15 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | Class B |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 5 ms |
| Release Time | 5 ms |
| Operating Temperature | -25°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Approval Agency | cURus |
| Relay Type | Telecom |
| Grade | - |
| Qualification | - |
| Coil Resistance | 1.6 kOhms |
| Base Product Number | PC312-24H |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

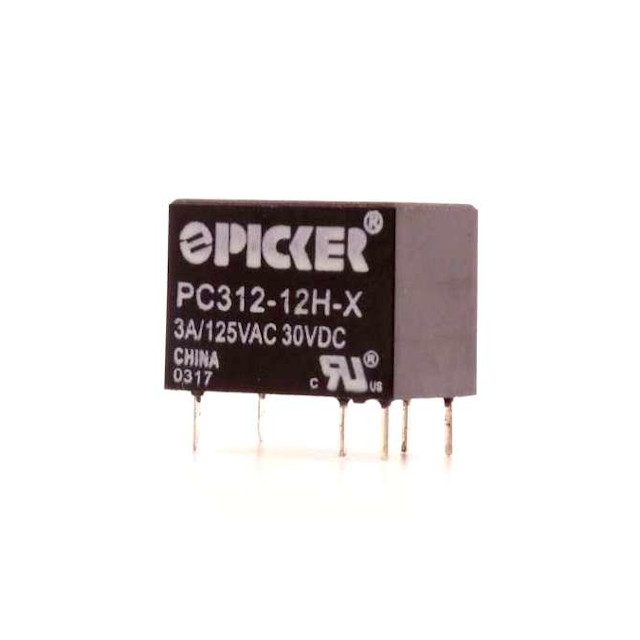

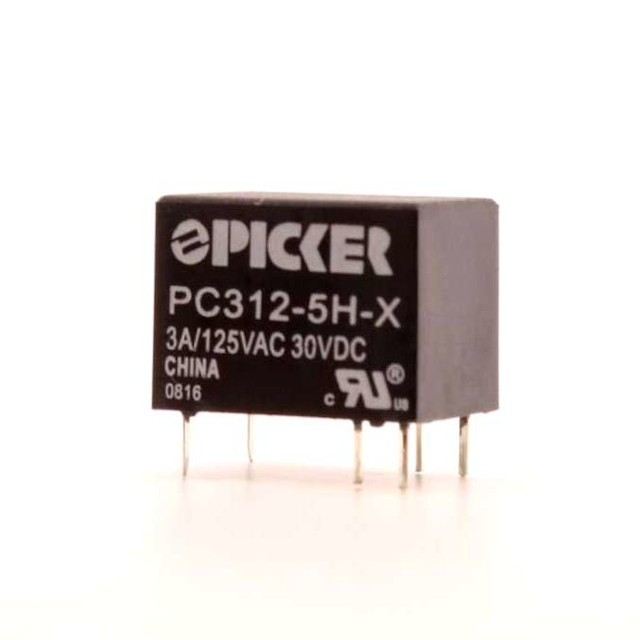

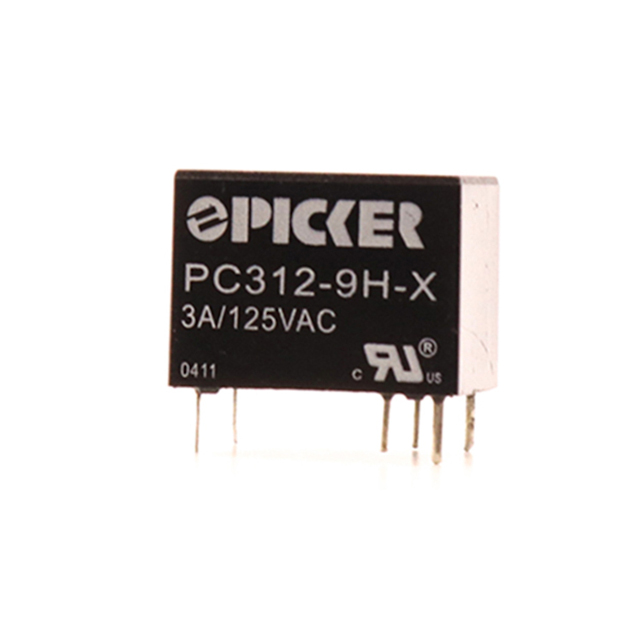

| Part Number | PC312-12H-X | PC312-5H-X | PC312-9H-X | PC312B-12H-X |
| Manufacturer | Picker Components | Picker Components | Picker Components | Picker Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY TELECOM SPDT 3A 12V | RELAY TELECOM SPDT 3A 5V | RELAY TELECOM SPDT 3A 9V | RELAY TELECOM SPDT 3A 12V |
| Series | Picker Components | Picker Components | Picker Components | Picker Components |
| Packaging | Tube | Tube | Tube | Tube |
