Product CatalogPart Number
PC357M0TJ00F
Manufacturer
Sharp MicroelectronicsDescription
OPTOISOLATOR 3.75KV TRANSISTOR
Datasheet
DatasheetPackage
4-Miniflat
In Stock
14,717 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PC357M0TJ00F
PC357M0TJ00F
lmages are for reference only.Payment Methods
Delivery Services
Optoisolator Transistor Output 3750Vrms 1 Channel 4-Mini-Flat
Quick Inquiry
PC357M0TJ00F
Specifications
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Sharp Microelectronics |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 80% @ 5mA |
| Current Transfer Ratio (Max) | 600% @ 5mA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 200mV |
| Operating Temperature | -30°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-Miniflat |
| Supplier Device Package | 4-Mini-Flat |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
|
|
|
| Part Number | PC357M0J000F | PC357M15J00F | PC357M1J000F | PC357M2J000F |
| Manufacturer | Sharp Microelectronics | Sharp Microelectronics | Sharp Microelectronics | Sharp Microelectronics |
| RoHS Status | ||||
| Description | OPTOISOLATOR 3.75KV TRANSISTOR | OPTOISOLATOR 3.75KV TRANSISTOR | OPTOISOLATOR 3.75KV TRANSISTOR | OPTOISOLATOR 3.75KV TRANSISTOR |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products
PC357M0J000F
Sharp Microelectronics
PC357M15J00F
Sharp Microelectronics
PC357M1J000F
Sharp Microelectronics
PC357M2J000F
Sharp Microelectronics
PC357M3J000F
Sharp Microelectronics
PC357M4J000F
Sharp Microelectronics
PC357M5J000F
Sharp Microelectronics
PC357M6J000F
Sharp Microelectronics

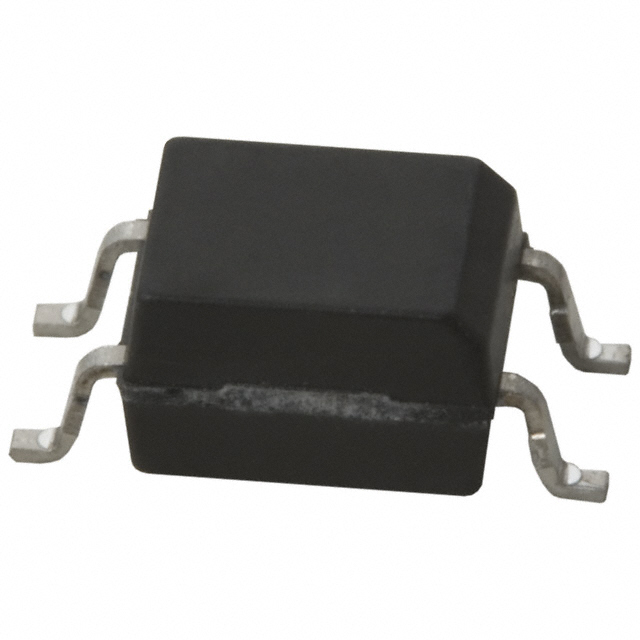

PC357M7J000F
Sharp Microelectronics
PC357M8J000F
Sharp Microelectronics
PC357M9J000F
Sharp Microelectronics
PC357MJ0000F
Sharp Microelectronics
PC357N
Sharp Microelectronics
PC357N0
Sharp Microelectronics

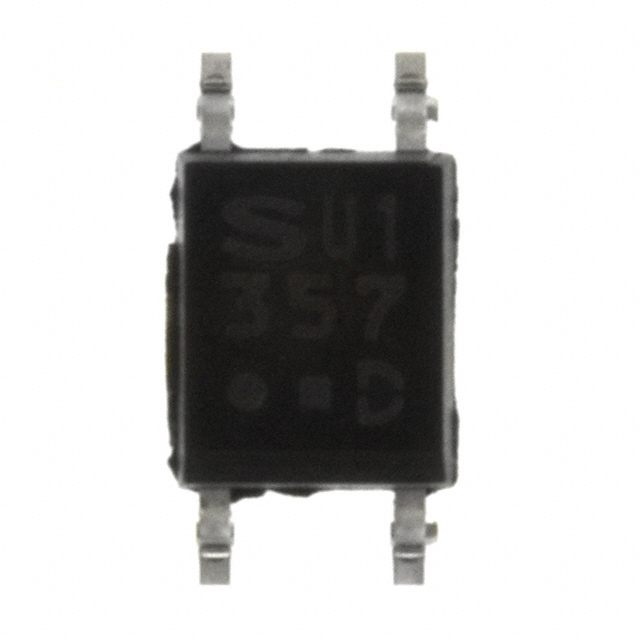

PC357N0J000F
Sharp Microelectronics
PC357N0TJ00F
Sharp Microelectronics

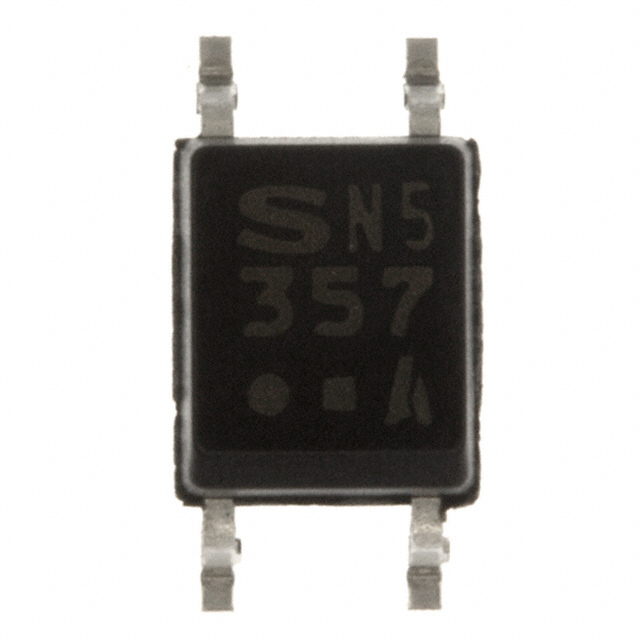

PC357N1
Sharp Microelectronics

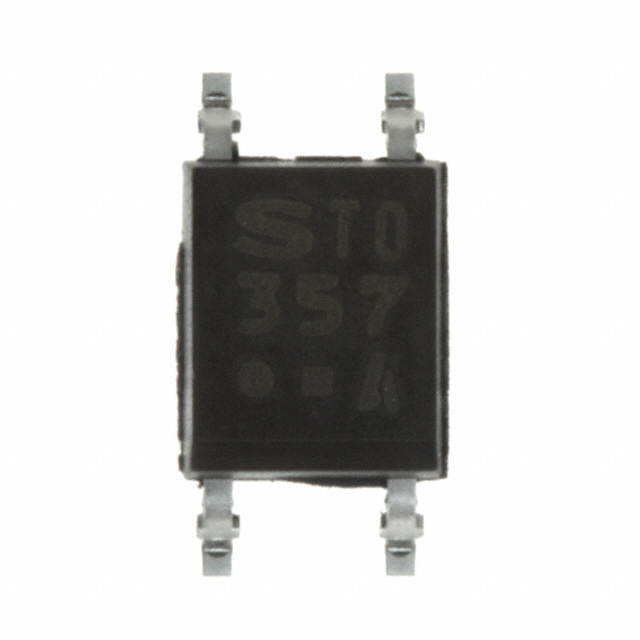

PC357N1J000F
