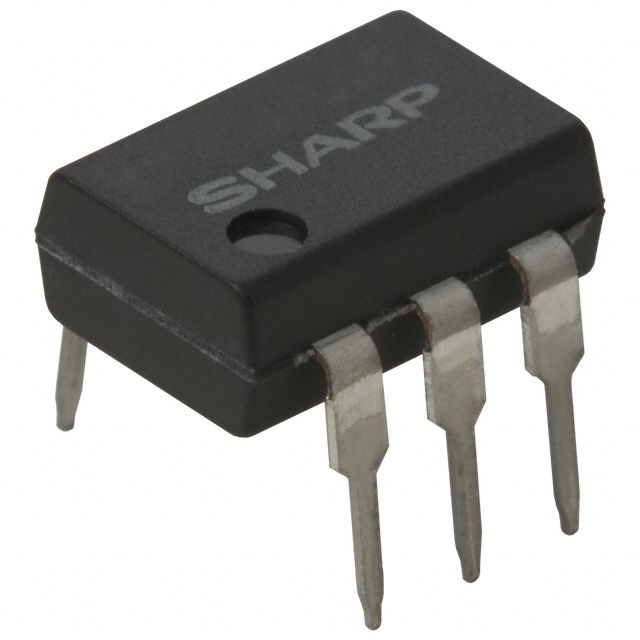

PC3SD12NTZA
lmages are for reference only.PC3SD12NTZA
OPTOISOLATOR 5KV TRIAC 6DIP
Datasheet6-DIP (0.300", 7.62mm), 5 Leads
75,403 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Triac Output 5000Vrms 1 Channel 6-DIP
PC3SD12NTZA
| Category | Isolators - Optoisolators - Triac-SCR Output Optoisolators |
| Manufacturer | Sharp Microelectronics |
| Series | - |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| Output Type | Triac |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Voltage - Off State | 600 V |
| Static dV/dt (Min) | 1kV/µs |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Current - Hold (Ih) | 3.5mA |
| Turn On Time | 50µs (Max) |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Operating Temperature | -30°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.300", 7.62mm), 5 Leads |
| Supplier Device Package | 6-DIP |
| Approval Agency | CSA, UR |
| Base Product Number | PC3SD12 |
| Current - On State (It (RMS)) (Max) | 100 mA |
| Product Attribute |  |
 |
 |
 |
| Part Number | PC3SD12NTZAF | PC3SD12NTZAH | PC3SD12NXZA | PC3SD12NXZAF |
| Manufacturer | Sharp Microelectronics | SHARP/Socle Technology | Sharp Microelectronics | Sharp Microelectronics |
| RoHS Status | RoHS Compliant | RoHS non-compliant | ||

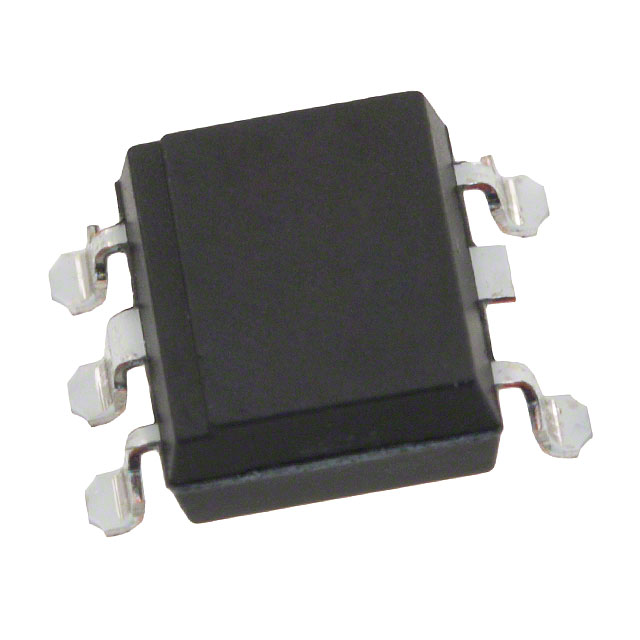

| Description | OPTOISOLATOR 5KV TRIAC 6DIP | OPTOISOLATOR 5KV TRIAC DIP | OPTOISOLATOR 5KV TRIAC 6SMD | OPTOISOLATOR 5KV TRIAC 6SMD |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
