PC3SG21YIZ0F

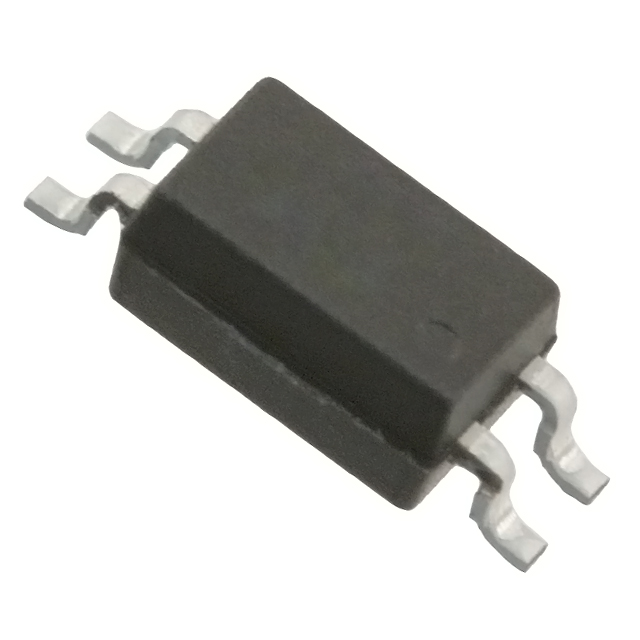

lmages are for reference only.PC3SG21YIZ0F
OPTOISOLATOR 3.75KV TRIAC 4SMD
Datasheet4-SOIC (0.173", 4.40mm Width)
24,047 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Triac Output 3750Vrms 1 Channel 4-SMD
PC3SG21YIZ0F
| Category | Isolators - Optoisolators - Triac-SCR Output Optoisolators |
| Manufacturer | Sharp Microelectronics |
| Series | - |
| Packaging | Tube |
| RoHS Status | |
| Output Type | Triac |
| Zero Crossing Circuit | Yes |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Voltage - Off State | 600 V |
| Static dV/dt (Min) | 1kV/µs |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Current - Hold (Ih) | 3.5mA |
| Turn On Time | 50µs (Max) |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Operating Temperature | -30°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SOIC (0.173", 4.40mm Width) |
| Supplier Device Package | 4-SMD |
| Approval Agency | UR, VDE |
| Base Product Number | PC3SG21 |
| Current - On State (It (RMS)) (Max) | 50 mA |
| Product Attribute |  |
 |
 |
 |
| Part Number | PC3SG21YIZ | PC3ST21NSZCF | PC3SD21NTZAF | PC3SD21YTZDF |
| Manufacturer | Sharp Microelectronics | Sharp Microelectronics | SHARP/Socle Technology | Sharp Microelectronics |
| RoHS Status | RoHS non-compliant | RoHS Compliant | ||
| Description | OPTOISOLATOR 3.75KV TRIAC 4SMD | OPTOISOLATOR 5KV TRIAC 4DIP | OPTOISOLATOR 5KV TRIAC 6DIP | OPTOISOLATOR 5KV TRIAC 6DIP |
| Series | * | - | - | - |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tube |
