PC401

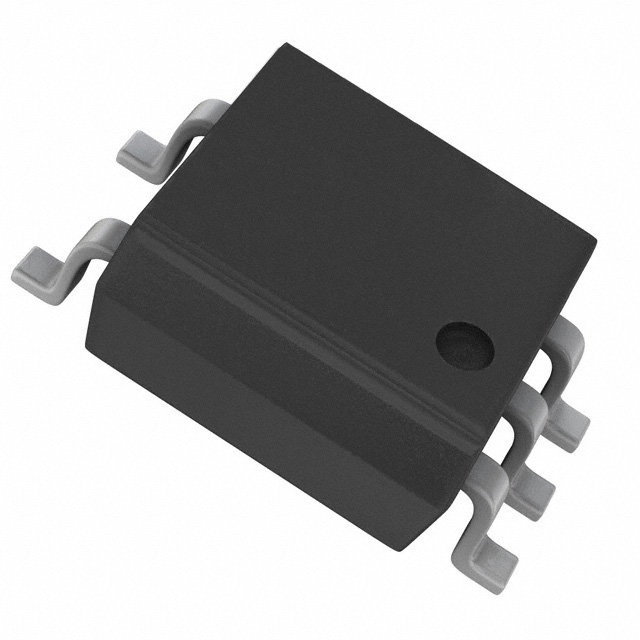

lmages are for reference only.PC401
OPTOISO 3.75KV OPEN COLL 5MFP
Datasheet6-SOIC (0.173", 4.40mm Width), 5 Leads
14,586 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Logic Output Optoisolator Open Collector 3750Vrms 1 Channel CMTI 5-MFP
PC401
| Category | Isolators - Optoisolators - Logic Output Optoisolators |
| Manufacturer | Sharp Microelectronics |
| Series | OPIC™ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | - |
| Input Type | DC |
| Output Type | Open Collector |
| Current - Output / Channel | 50 mA |
| Data Rate | - |
| Propagation Delay tpLH / tpHL (Max) | 3µs, 6µs |
| Rise / Fall Time (Typ) | 100ns, 50ns |
| Voltage - Forward (Vf) (Typ) | 1.1V |
| Current - DC Forward (If) (Max) | 50mA |
| Voltage - Supply | 3V ~ 15V |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.173", 4.40mm Width), 5 Leads |
| Supplier Device Package | 5-MFP |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|
| Part Number | PC400 | PC400 | PC400J000007 | PC400J000007 |
| Manufacturer | Sharp Microelectronics | Sharp Microelectronics | Sharp Microelectronics | Sharp Microelectronics |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS Compliant | RoHS Compliant |
| Description | OPTOISO 3.75KV OPEN COLL 5MFP | OPTOISO 3.75KV OPEN COLL 5MFP | OPTOISO 5KV OPEN COLLECTOR SMD | OPTOISO 5KV OPEN COLLECTOR SMD |
| Series | OPIC™ | OPIC™ | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
