PC81101NSZ

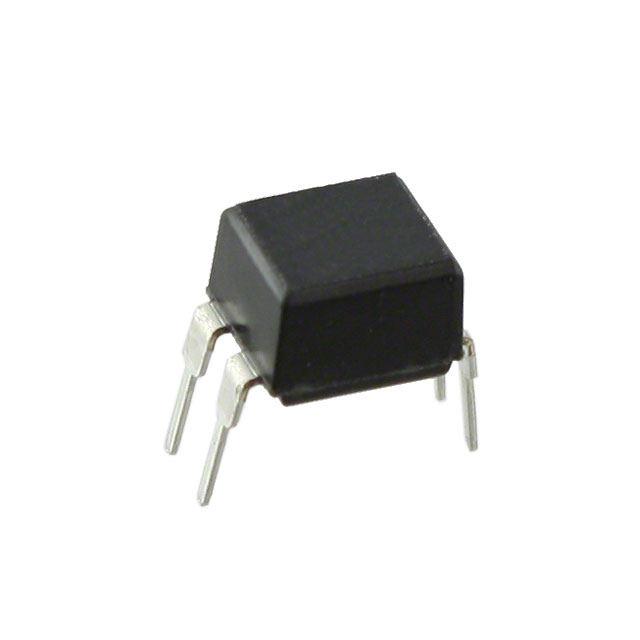

lmages are for reference only.PC81101NSZ
OPTOISOLATOR 5KV TRANS 4DIP
Datasheet4-DIP (0.300", 7.62mm)
26,288 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP
PC81101NSZ
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Sharp Microelectronics |
| Series | PC8110xNSZ |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | - |
| Current Transfer Ratio (Max) | - |
| Turn On / Turn Off Time (Typ) | 2µs, 23µs |
| Rise / Fall Time (Typ) | 3µs, 2µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 70V |
| Current - Output / Channel | 30mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 350mV |
| Operating Temperature | -30°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 4-DIP (0.300", 7.62mm) |
| Supplier Device Package | 4-DIP |
| Base Product Number | PC8110 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PC81101NSZ0F | PC810I | PC81100NSZ | PC81100NSZ0F |
| Manufacturer | Sharp Microelectronics | Sharp Microelectronics | Sharp Microelectronics | Sharp Microelectronics |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ||
| Description | OPTOISOLATOR 5KV TRANS 4DIP | OPTOISOLATOR 5KV TRANS 4SMD | OPTOISOLATOR 5KV TRANS 4DIP | OPTOISOLATOR 5KV TRANS 4DIP |
| Series | PC8110xNSZOF | - | - | PC8110xNSZOF |
| Packaging | Tube | Tube | Tube | Tube |
