PC81712NIP

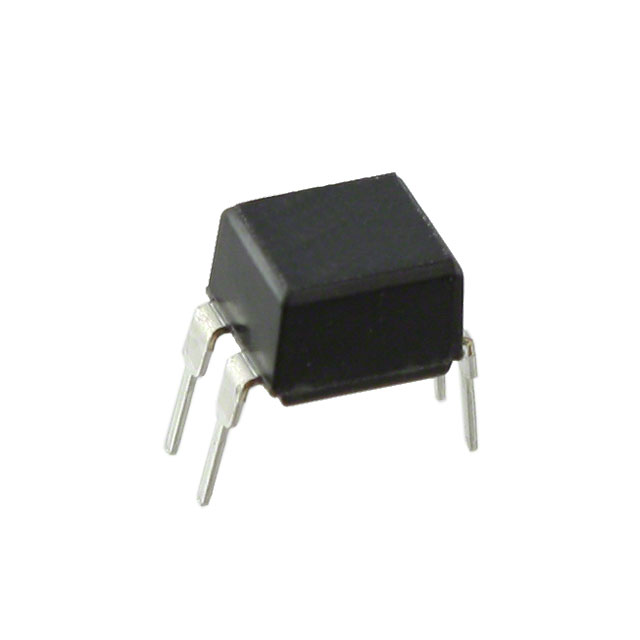

lmages are for reference only.PC81712NIP
OPTOISOLATOR 5KV TRANS 4SMD
Datasheet4-SMD, Gull Wing
29,626 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD
PC81712NIP
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Sharp Microelectronics |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 160% @ 500µA |
| Current Transfer Ratio (Max) | 400% @ 500µA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 10 mA |
| Vce Saturation (Max) | 200mV |
| Operating Temperature | -30°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SMD |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PC81712NIP0F | PC81712NIP0X | PC81712NSZ | PC81712NSZ0F |
| Manufacturer | Sharp Microelectronics | Sharp Microelectronics | Sharp Microelectronics | Sharp Microelectronics |
| RoHS Status | RoHS non-compliant | |||
| Description | OPTOISOLATOR 5KV TRANS 4SMD | OPTOISOLATOR 5KV TRANS 4SMD | OPTOISOLATOR 5KV TRANS 4DIP | OPTOISOLATOR 5KV TRANS 4DIP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tube | Tube |
