Product CatalogPart Number
PCS-0R047D1
Manufacturer
Riedon products by BournsDescription
RES 0.047 OHM 0.5% 40W RADIAL
Datasheet
DatasheetPackage
4-SIP
In Stock
86,298 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PCS-0R047D1
PCS-0R047D1

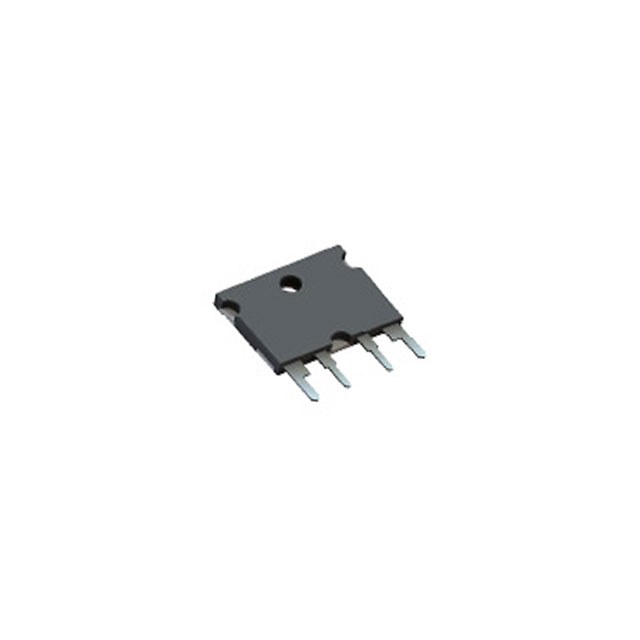

lmages are for reference only.Payment Methods
Delivery Services
47 mOhms ±0.5% 40W Through Hole Resistor 4-SIP Current Sense Metal Foil
Quick Inquiry
PCS-0R047D1
Specifications
| Category | Resistors - Through Hole Resistors - |
| Manufacturer | Riedon products by Bourns |
| Series | PCS |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Resistance | 47 mOhms |
| Tolerance | ±0.5% |
| Power (Watts) | 40W |
| Composition | Metal Foil |
| Features | Current Sense |
| Temperature Coefficient | ±10ppm/°C |
| Operating Temperature | -40°C ~ 130°C |
| Package / Case | 4-SIP |
| Supplier Device Package | Radial Lead |
| Size / Dimension | 0.878" L x 0.177" W (22.30mm x 4.50mm) |
| Height - Seated (Max) | 0.687" (17.45mm) |
| Number of Terminations | 4 |
| Failure Rate | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | PCS-0R0015D1 | PCS-0R001D1 | PCS-0R0022D1 | PCS-0R002D1 |
| Manufacturer | Riedon products by Bourns | Riedon products by Bourns | Riedon products by Bourns | Riedon products by Bourns |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 0.0015 OHM 0.5% 40W RADIAL | RES 0.001 OHM 0.5% 40W RADIAL | RES 0.0022 OHM 0.5% 40W RADIAL | RES 0.002 OHM 0.5% 40W RADIAL |
| Series | Riedon products by Bourns | Riedon products by Bourns | Riedon products by Bourns | Riedon products by Bourns |
| Packaging | Tube | Tube | Tube | Tube |
