PD0560-8-SF
lmages are for reference only.PD0560-8-SF
Power Divider 8 Way 0.5 to 6 GHz
DatasheetModule, SMA Connectors
53,778 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Power Divider 500 MHz ~ 6 GHz Isolation (Min) 18dB, 5° Imbalance (Max), 1.5 VSWR (Max) Module, SMA Connectors
PD0560-8-SF
| Category | RF and Wireless - RF Power Dividers-Splitters - |
| Manufacturer | WITHWAVE CO LTD |
| Series | - |
| Packaging | Case |
| RoHS Status | |
| Insertion Loss | 11.8dB |
| Frequency | 500 MHz ~ 6 GHz |
| Specifications | Isolation (Min) 18dB, 5° Imbalance (Max), 1.5 VSWR (Max) |
| Size / Dimension | 4.567" L x 4.449" W x 0.394" H (116.00mm x 113.00mm x 10.00mm) |
| Package / Case | Module, SMA Connectors |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |
| Part Number | PD0560-8-SF | PD0560-2-SF | PD0560-2-SF | PD0560-4-SF |
| Manufacturer | WITHWAVE CO LTD | WITHWAVE CO LTD | WITHWAVE CO LTD | WITHWAVE CO LTD |
| RoHS Status | ||||

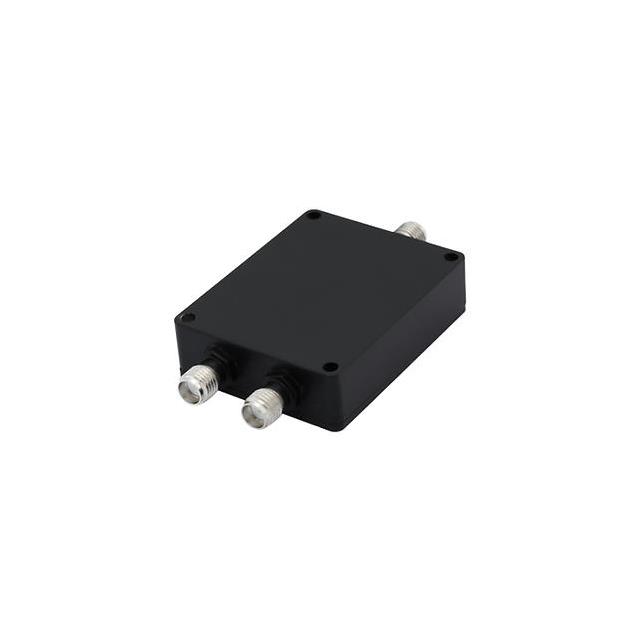

| Description | Power Divider 8 Way 0.5 to 6 GHz | Power Divider 2 Way 0.5 to 6 GHz | Power Divider 2 Way 0.5 to 6 GHz | Power Divider 4 Way 0.5 to 6 GHz |
| Series | - | - | - | - |
| Packaging | Case | Case | Case | Case |
