Product CatalogPart Number
PDB-C156
Manufacturer
Advanced PhotonixDescription
SENSOR PHOTODIODE 660NM RADIAL
Datasheet
DatasheetPackage
Radial
In Stock
38,143 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PDB-C156
PDB-C156
lmages are for reference only.Payment Methods
Delivery Services
Photodiode 660nm 15ns 120° Radial
Quick Inquiry
PDB-C156
Specifications
| Category | Sensors, Transducers - Optical Sensors - Photodiodes |
| Manufacturer | Advanced Photonix |
| Series | - |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) |
| RoHS Status | RoHS Compliant |
| Wavelength | 660nm |
| Color - Enhanced | Blue |
| Spectral Range | 400nm ~ 1100nm |
| Diode Type | PIN |
| Responsivity @ nm | - |
| Response Time | 15ns |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
| Current - Dark (Typ) | 2nA |
| Active Area | 8.07mm² |
| Viewing Angle | 120° |
| Operating Temperature | -40°C ~ 80°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

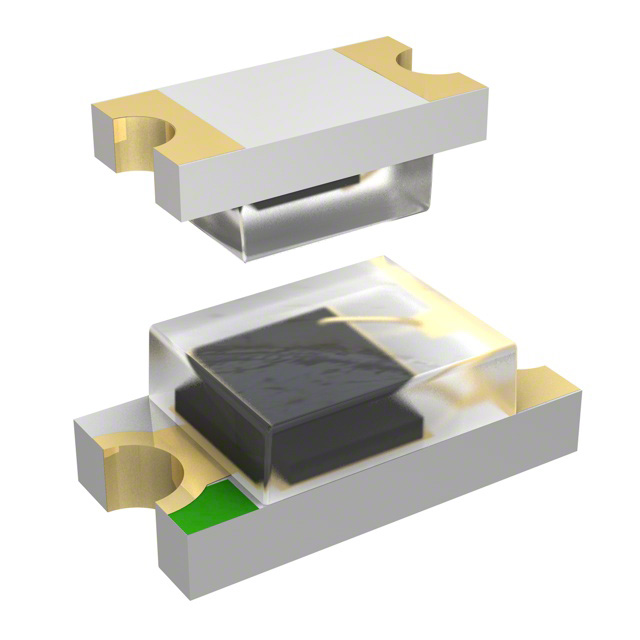

| Part Number | PDB-C150SM | PDB-C152SM | PDB-C152SMF | PDB-C154SM |
| Manufacturer | Advanced Photonix | Advanced Photonix | Advanced Photonix | Advanced Photonix |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS non-compliant | RoHS Compliant |
| Description | SENSOR PHOTODIODE 660NM TO236-3 | SENSOR PHOTODIODE 660NM 1206 | SENSOR PHOTODIODE 660NM 1206 | SENSOR PHOTODIODE 660NM 1210 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT)--> |
