PDL09-12D15M

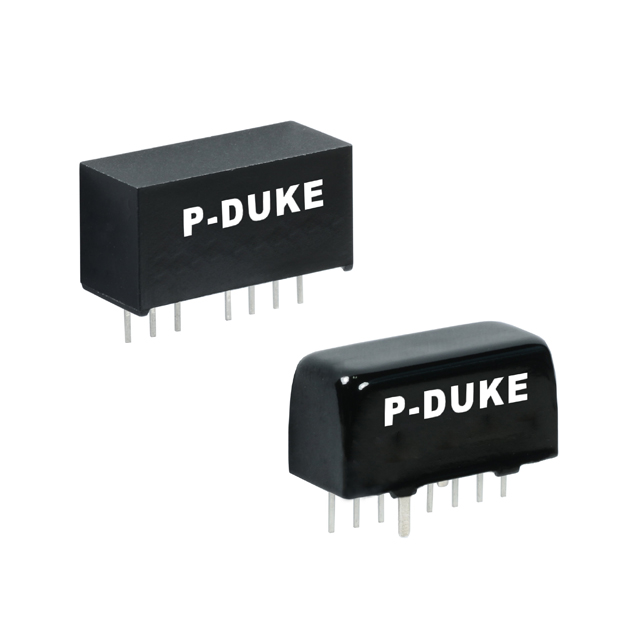

lmages are for reference only.PDL09-12D15M
DC DC CONVERTER +/-15V 9W
Datasheet12-SIP Module, 10 Leads
77,980 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 15V -15V 300mA, 300mA 9V - 18V Input
PDL09-12D15M
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | P-DUKE Technology |
| Series | PDL09 (9W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 18V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 300mA, 300mA |
| Power (Watts) | 9 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, Standby Output |
| Operating Temperature | -40°C ~ 100°C (With Derating) |
| Efficiency | 89% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 12-SIP Module, 10 Leads |
| Size / Dimension | 0.83" L x 0.38" W x 0.44" H (21.0mm x 9.6mm x 11.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB, CE, cURus |
| Standard Number | - |
| Base Product Number | PDL09 |
| Voltage - Isolation | 1.6 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | PDL09-12S05M | PDL09-12S12M | PDL09-24D12M | PDL09-24D15M |
| Manufacturer | P-DUKE Technology | P-DUKE Technology | P-DUKE Technology | P-DUKE Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 5V 8W | DC DC CONVERTER 12V 9W | DC DC CONVERTER +/-12V 9W | DC DC CONVERTER +/-15V 9W |
| Series | P-DUKE Technology | P-DUKE Technology | P-DUKE Technology | P-DUKE Technology |
| Packaging | Tube | Tube | Tube | Tube |
