PDME2-15-D15-D
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 15V -15V 67mA, 67mA 13.5V - 16.5V Input
PDME2-15-D15-D
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | CUI Inc. |
| Series | PDME2-D (2W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 13.5V |
| Voltage - Input (Max) | 16.5V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 67mA, 67mA |
| Power (Watts) | 1 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 81% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP Module, 6 Leads |
| Size / Dimension | 0.80" L x 0.40" W x 0.32" H (20.3mm x 10.2mm x 8.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
 |
 |

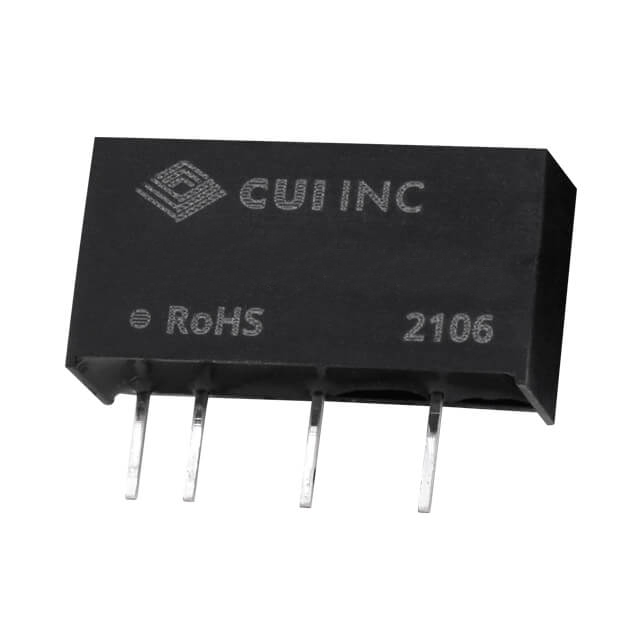

| Part Number | PDME2-15-S15-D | PDME2-15-S5-D | PDME2-15-S9-D | PDME1-S12-D12-S |
| Manufacturer | CUI Inc. | CUI Inc. | CUI Inc. | CUI Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | DC-DC ISOLATED, 2W, 13.5~16.5 VD | DC-DC ISOLATED, 2W, 13.5~16.5 VD | DC-DC ISOLATED, 2W, 13.5~16.5 VD | DC-DC ISOLATED 1.5KV, 1 W, 10.8~ |
| Series | CUI Inc. | CUI Inc. | CUI Inc. | CUI Inc. |
| Packaging | Tube | Tube | Tube | Tube |
