Product CatalogPart Number
PDQE10-Q48-S24-U
Manufacturer
CUI Inc.Description
DC/DC CONVERTER 24V 10W
Datasheet
DatasheetPackage
-
In Stock
44,928 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PDQE10-Q48-S24-U
PDQE10-Q48-S24-U
lmages are for reference only.Payment Methods
Delivery Services
Enclosed DC DC Converter 1 Output 24V 416mA 75V Input
Quick Inquiry
PDQE10-Q48-S24-U
Specifications
| Category | Power Supplies - External/Internal (Off-Board) - DC DC Converters - |
| Manufacturer | CUI Inc. |
| Series | PDQE10 (10W) |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Type | Enclosed |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 416mA |
| Power (Watts) | 10W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Efficiency | 88% |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 2.17" L x 2.06" W x 0.75" H (55.0mm x 52.3mm x 19.0mm) |
| Approval Agency | CE |
| Standard Number | 62368-1 |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

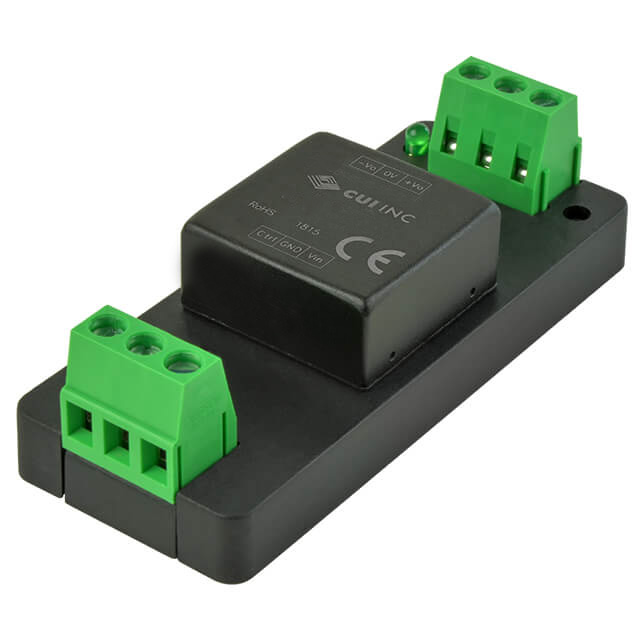

| Part Number | PDQE10-Q48-S24-T | PDQE10-Q48-D12-T | PDQE10-Q48-D12-U | PDQE10-Q48-D15-T |
| Manufacturer | CUI Inc. | CUI Inc. | CUI Inc. | CUI Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC/DC CONVERTER 24V 10W | DC/DC CONVERTER +/-12V 10W | DC/DC CONVERTER +/-12V 10W | DC/DC CONVERTER +/-15V 10W |
| Series | PDQE10 (10W) | PDQE10 (10W) | PDQE10 (10W) | PDQE10 (10W) |
| Packaging | Tray | Tray | Tray | Tray |
