Isolated Module DC DC Converter 1 Output 5V 200mA 13.5V - 16.5V Input
PDSE1-S15-S5-M
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | CUI Inc. |
| Series | PDSE1-M (1W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 13.5V |
| Voltage - Input (Max) | 16.5V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 200mA |
| Power (Watts) | 1 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 82% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD Module, 5 Leads |
| Size / Dimension | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE, cURus |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
|
 |

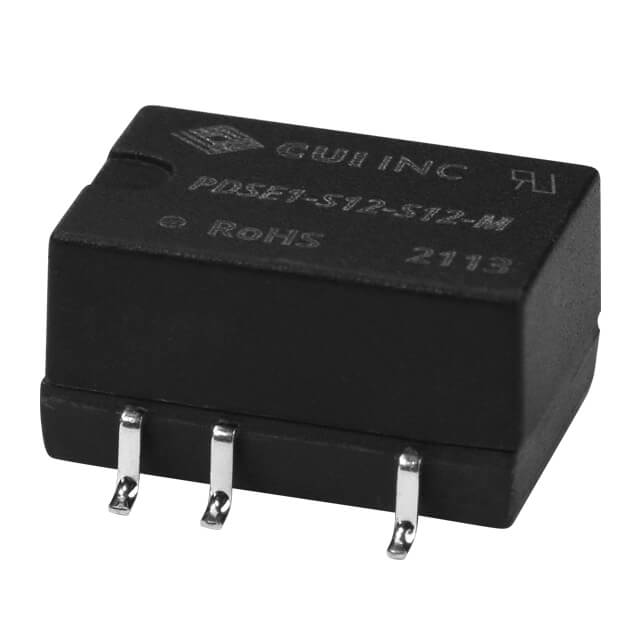

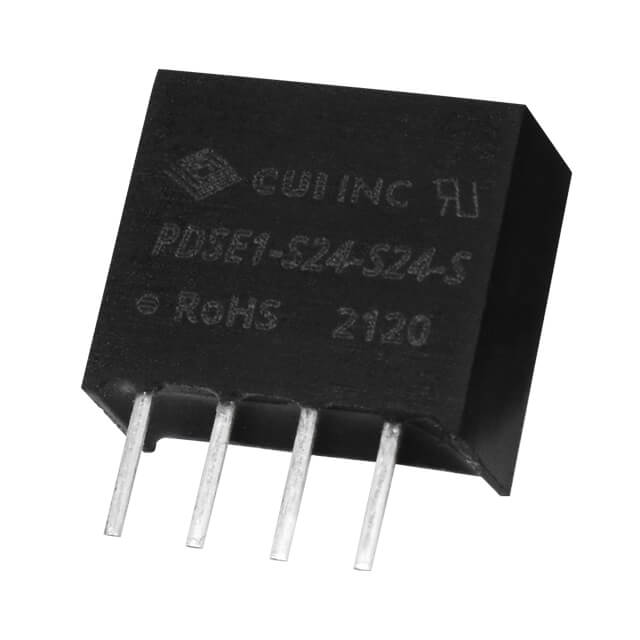

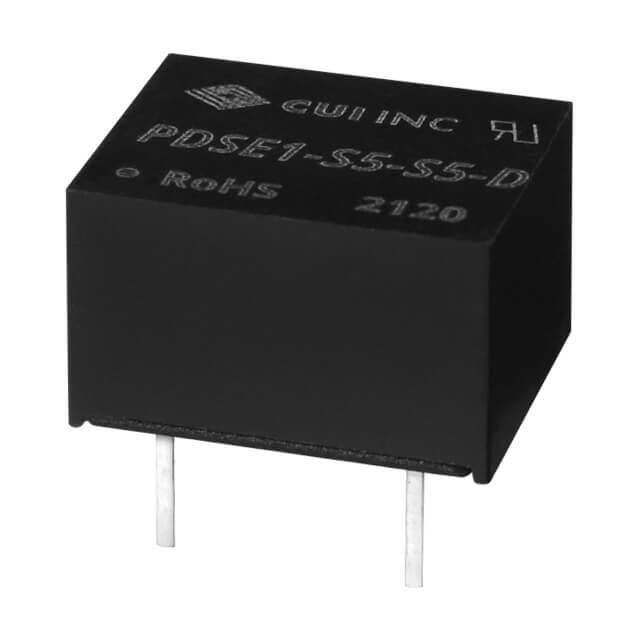

| Part Number | PDSE1-S15-S5-D | PDSE1-S15-S5-M-TR | PDSE1-S15-S5-M-TR | PDSE1-S15-S5-S |
| Manufacturer | CUI Inc. | CUI Inc. | CUI Inc. | CUI Inc. |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | DC-DC 3KV ISOLATED, 1 W, 13.5~16 | DC-DC ISOLATED 1.5KV, 1 W, 13.5~ | DC-DC ISOLATED 1.5KV, 1 W, 13.5~ | DC-DC 1.5KV ISOLATED, 1 W, 13.5~ |
| Series | CUI Inc. | CUI Inc. | CUI Inc. | CUI Inc. |
| Packaging | Tube | Tape & Reel (TR) | Tape & Reel (TR) | Tube |
