PE-0402CD100GTT

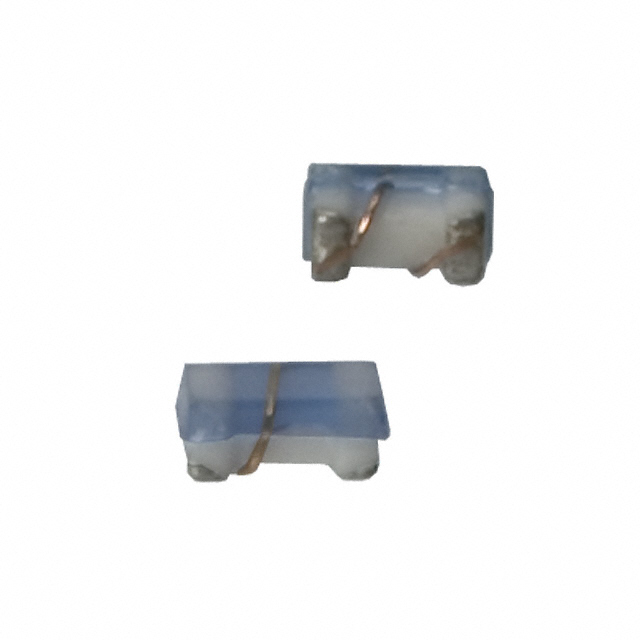

lmages are for reference only.PE-0402CD100GTT
FIXED IND 10NH 480MA 195MOHM SMD
Datasheet0402 (1005 Metric)
89,911 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 nH Unshielded Drum Core, Wirewound Inductor 480 mA 195mOhm Max 0402 (1005 Metric)
PE-0402CD100GTT
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Pulse Electronics |
| Series | 0402CD |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 10 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 480 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 195mOhm Max |
| Q @ Freq | 21 @ 250MHz |
| Frequency - Self Resonant | 3.9GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) |
| Size / Dimension | 0.047" L x 0.026" W (1.19mm x 0.66mm) |
| Height - Seated (Max) | 0.024" (0.61mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PE-0402CD100JTG | PE-0402CD100JTT | PE-0402CD100KTT | PE-0402CD101GTT |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | |
| Description | FIXED IND 10NH 480MA 195MOHM SMD | FIXED IND 10NH 480MA 195MOHM SMD | FIXED IND 10NH 480MA 195MOHM SMD | FIXED IND 100NH 100MA 2.6OHM SMD |
| Series | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
