PE-0603CD101KTT

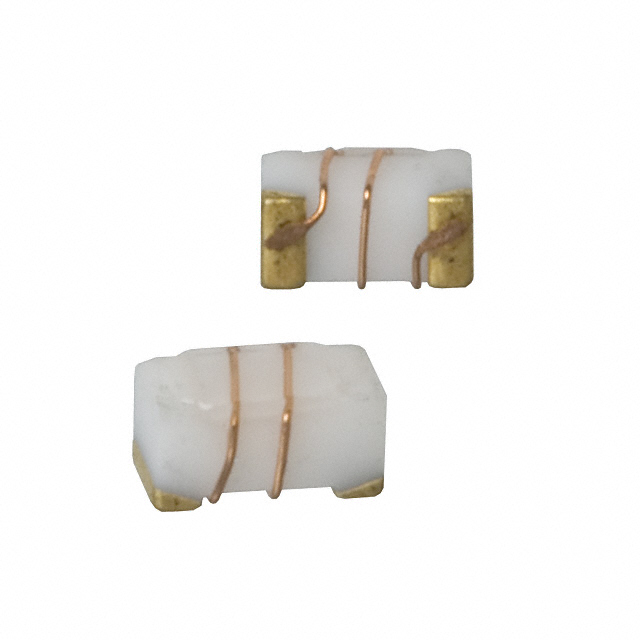

lmages are for reference only.PE-0603CD101KTT
FIXED IND 98.5NH 400MA 580 MOHM
Datasheet0603 (1608 Metric)
76,218 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
98.5 nH Unshielded Drum Core, Wirewound Inductor 400 mA 580mOhm Max 0603 (1608 Metric)
PE-0603CD101KTT
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Pulse Electronics |
| Series | 0603CD |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 98.5 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 400 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 580mOhm Max |
| Q @ Freq | 34 @ 150MHz |
| Frequency - Self Resonant | 1.4GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 150 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) |
| Size / Dimension | 0.071" L x 0.049" W (1.80mm x 1.24mm) |
| Height - Seated (Max) | 0.040" (1.02mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |
| Part Number | PE-0603CD101GTT | PE-0603CD101JTT | PE-0603CD101KTT | PE-0603CD010JTT |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | FIXED IND 98.5NH 400MA 580 MOHM | FIXED IND 98.5NH 400MA 580 MOHM | FIXED IND 98.5NH 400MA 580 MOHM | FIXED IND 1.7NH 700MA 50MOHM SMD |
| Series | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
