PE-0805CD030KTT

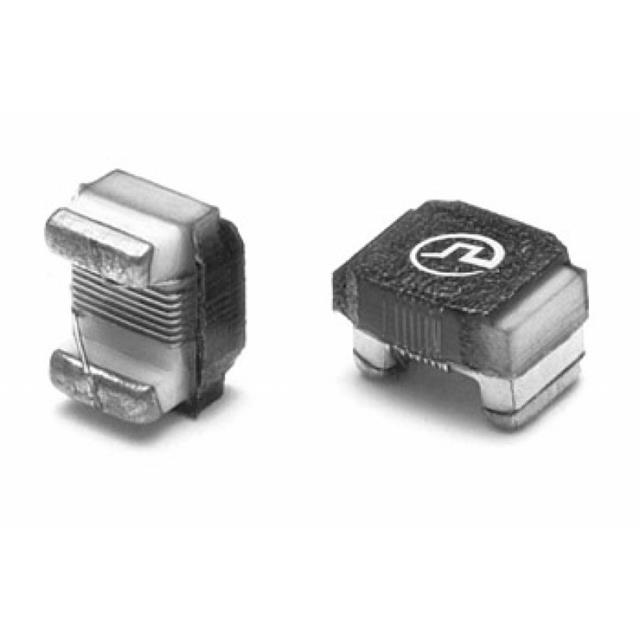

lmages are for reference only.PE-0805CD030KTT
FIXED IND 3.32NH 600MA 80MOHM SM
Datasheet0805 (2012 Metric)
64,514 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3.32 nH Unshielded Drum Core, Wirewound Inductor 600 mA 80mOhm Max 0805 (2012 Metric)
PE-0805CD030KTT
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Pulse Electronics |
| Series | 0805CD |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 3.32 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 600 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 80mOhm Max |
| Q @ Freq | 40 @ 1.5GHz |
| Frequency - Self Resonant | 6GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.090" L x 0.066" W (2.29mm x 1.68mm) |
| Height - Seated (Max) | 0.062" (1.58mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PE-0805CD030GTT | PE-0805CD030JTT | PE-0805CD050GTT | PE-0805CD050JTT |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 3.32NH 600MA 80MOHM SM | FIXED IND 3.32NH 600MA 80MOHM SM | FIXED IND 5.6NH 600MA 100MOHM SM | FIXED IND 5.6NH 600MA 100MOHM SM |
| Series | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
