PE-1206PFB121ST
lmages are for reference only.PE-1206PFB121ST
FERRITE BEAD 120 OHM 1206 1LN
Datasheet1206 (3216 Metric)
70,770 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
120 Ohms @ 100 MHz 1 Power Line Ferrite Bead 1206 (3216 Metric) 3A 30mOhm
PE-1206PFB121ST
| Category | Filters - Ferrite Beads and Chips - |
| Manufacturer | Pulse Electronics |
| Series | PFB |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Filter Type | Power Line |
| Number of Lines | 1 |
| Impedance @ Frequency | 120 Ohms @ 100 MHz |
| Current Rating (Max) | 3A |
| DC Resistance (DCR) (Max) | 30mOhm |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Package / Case | 1206 (3216 Metric) |
| Mounting Type | Surface Mount |
| Height (Max) | 0.033" (0.85mm) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Features | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

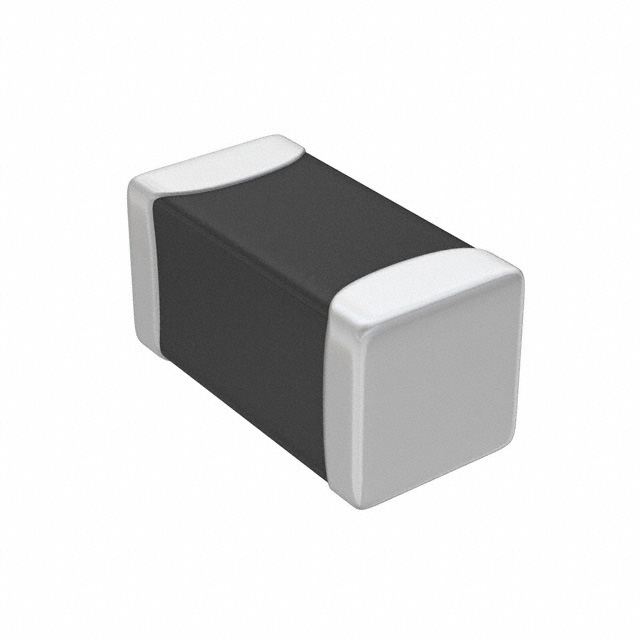

| Part Number | PE-1206PFB500ST | PE-1206PFB601ST | PE-1206FBA102ST | PE-1206FBA121ST |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | FERRITE BEAD 50 OHM 1206 1LN | FERRITE BEAD 600 OHM 1206 1LN | FERRITE BEAD 1K OHM 1206 4LN | FERRITE BEAD 120 OHM 1206 4LN |
| Series | PFB | PFB | FBA | FBA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
