Product CatalogPart Number
PE-65854NLT
Manufacturer
Pulse ElectronicsDescription
CMC 4LN SMD
Datasheet
DatasheetPackage
Vertical, 8 Flat Lead
In Stock
28,620 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PE-65854NLT
PE-65854NLT
lmages are for reference only.Payment Methods
Delivery Services
4 Line Common Mode Choke Surface Mount DCR 400mOhm
Quick Inquiry
PE-65854NLT
Specifications
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Pulse Electronics |
| Series | .025 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Filter Type | Signal Line |
| Number of Lines | 4 |
| Inductance @ Frequency | - |
| Current Rating (Max) | - |
| DC Resistance (DCR) (Max) | 400mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | 0°C ~ 70°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.360" L x 0.340" W (9.14mm x 8.64mm) |
| Height (Max) | 0.098" (2.50mm) |
| Package / Case | Vertical, 8 Flat Lead |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |
| Part Number | PE-65854 | PE-65854NL | PE-65854T | PE-65554NL |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| RoHS Status | RoHS non-compliant | RoHS Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | CMC 4LN SMD | CMC 4LN SMD | CMC 4LN SMD | CMC 4LN TH |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tube |
Customers Also Interested in
Recommended Products

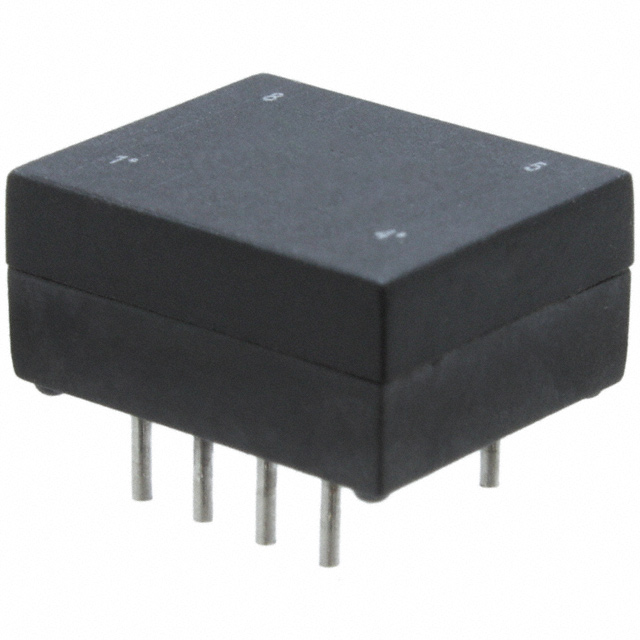

PE-65554NL
Pulse Electronics
PE-65738NLT
Pulse Electronics
PE-65854
Pulse Electronics

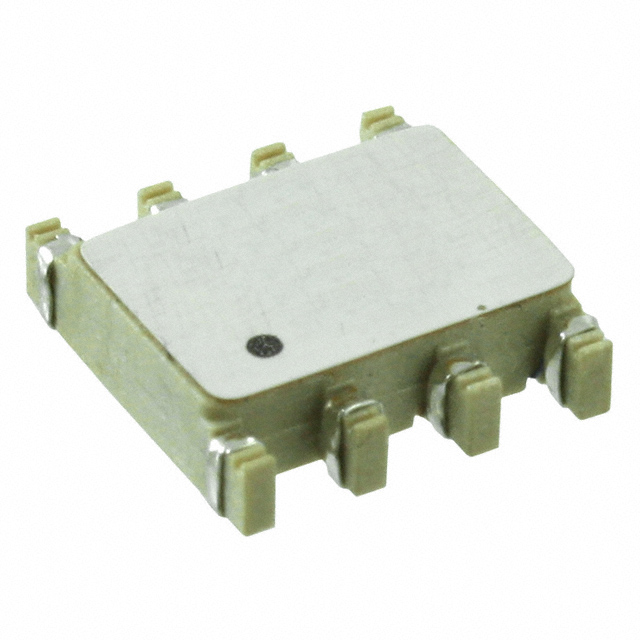

PE-65854NL
Pulse Electronics
PE-65854T
Pulse Electronics
PE-65855
Pulse Electronics

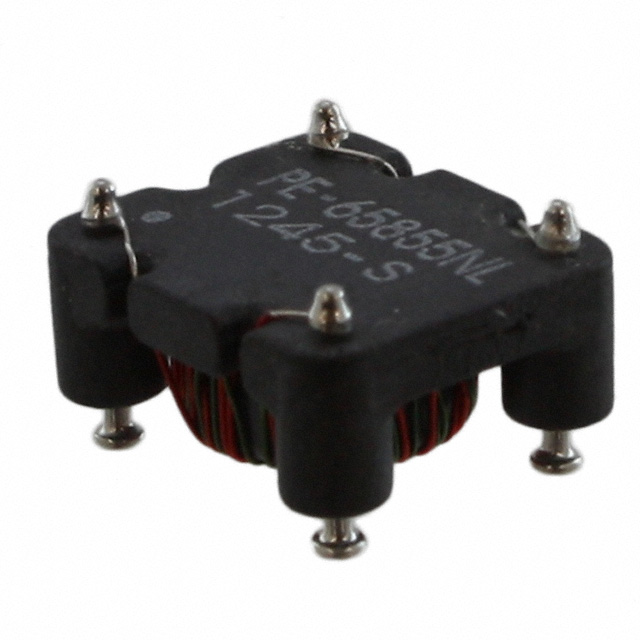

PE-65855NL
Pulse Electronics
PE-65855NLT
Pulse Electronics
PE-65855T
Pulse Electronics
PE-65857NL
Pulse Electronics

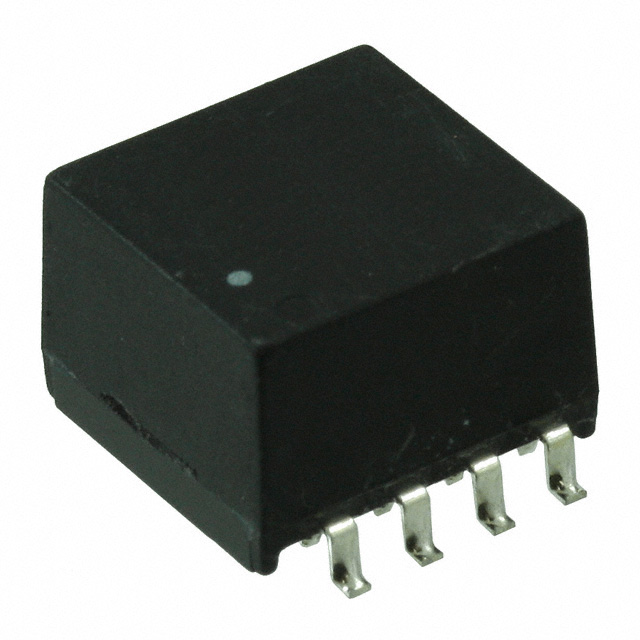

PE-65857NLT
