20V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SOT-563
PE1805C4E6_R1_00001
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Panjit International Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Steering (Rail to Rail) |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 20V |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | Yes |
| Applications | DVI, Ethernet, USB |
| Capacitance @ Frequency | 0.8pF @ 1MHz (Max) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-563, SOT-666 |
| Supplier Device Package | SOT-563 |
| Base Product Number | PE1805 |
| Unidirectional Channels | 4 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

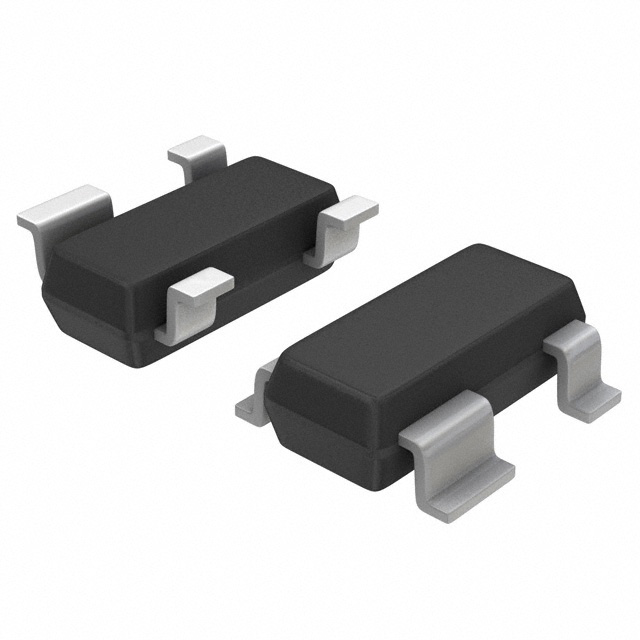

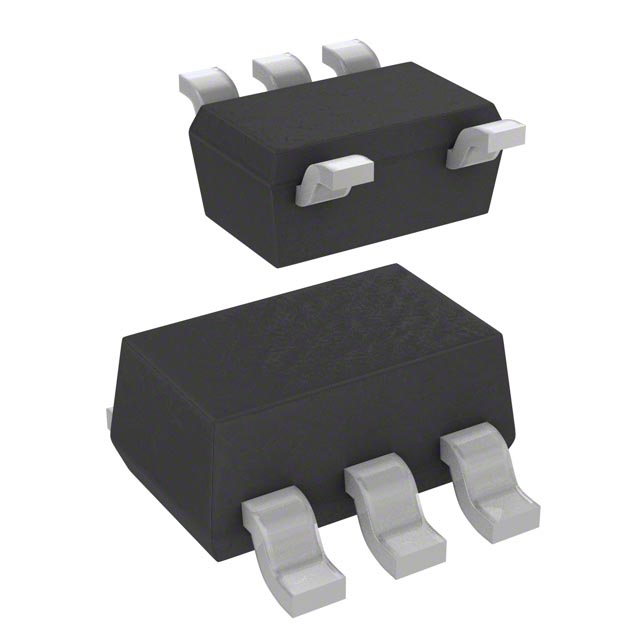

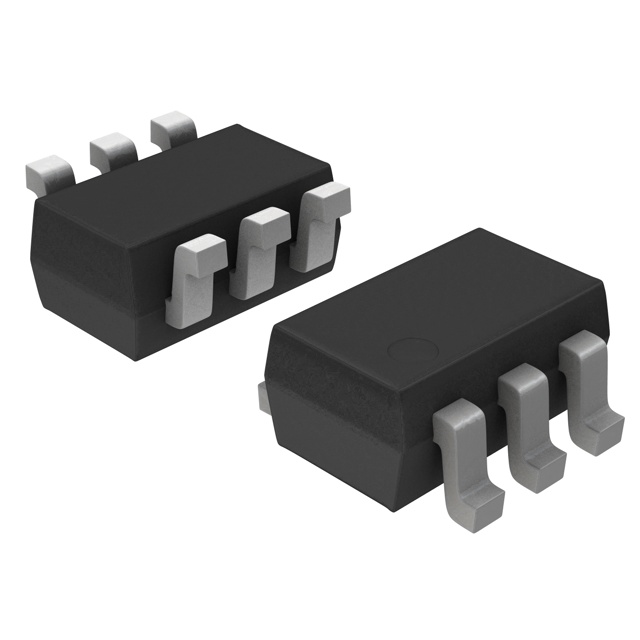

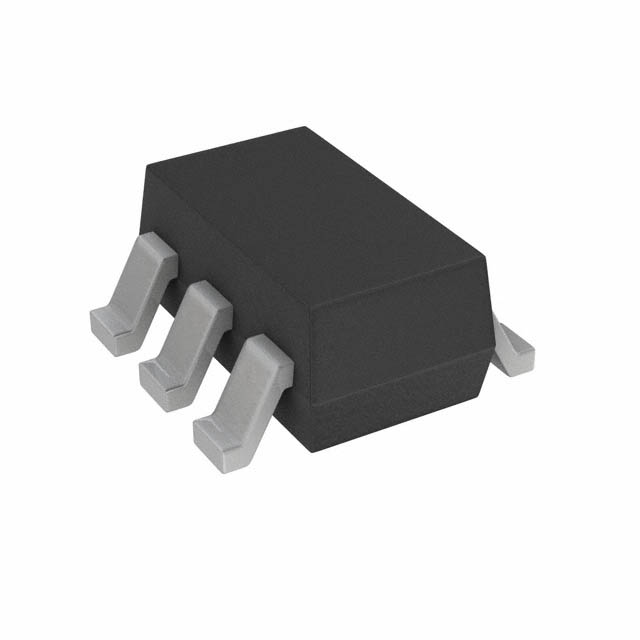

| Part Number | PE1805C2A4_R1_00001 | PE1805C4A6_R1_00001 | PE1805C4C5_R1_00001 | PE1805C4C6N_R1_00001 |
| Manufacturer | Panjit International Inc. | Panjit International Inc. | Panjit International Inc. | Panjit International Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SOT-143, TVS/ESD | SOT23-6L, TVS/ESD | ULTRA LOW CAPACITANCE ESD PROTEC | ULTRA LOW CAPACITANCE ESD PROTEC |
| Series | Panjit International Inc. | Panjit International Inc. | Panjit International Inc. | Panjit International Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
