PEME1-S24-D5-S

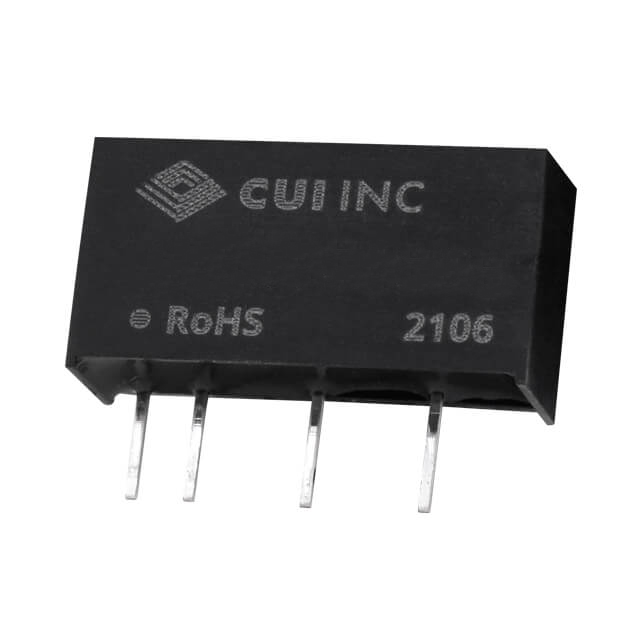

lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 21.6V - 26.4V Input
PEME1-S24-D5-S
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | CUI Inc. |
| Series | PEME1-S (1W) |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 21.6V |
| Voltage - Input (Max) | 26.4V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | -5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 100mA, 100mA |
| Power (Watts) | 1 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 80% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-SIP Module, 5 Leads |
| Size / Dimension | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE, cURus |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 3 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | PEME1-S24-D12-S | PEME1-S24-S12-S | PEME1-S24-S15-S | PEME1-S24-S24-S |
| Manufacturer | CUI Inc. | CUI Inc. | CUI Inc. | CUI Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC-DC ISOLATED 3KV, 1 W, 21.6~26 | DC-DC ISOLATED 3KV, 1 W, 21.6~26 | DC-DC ISOLATED 3KV, 1 W, 21.6~26 | DC-DC ISOLATED 3KV, 1 W, 21.6~26 |
| Series | CUI Inc. | CUI Inc. | CUI Inc. | CUI Inc. |
| Packaging | Tube | Tube | Tube | Tube |
