Product CatalogPart Number
PES-08-02-L-RA-SD
Manufacturer
Samtec Inc.Description
CONN RCPT 8POS 6.35MM R/A SLDR
Datasheet
DatasheetPackage
-
In Stock
20,943 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PES-08-02-L-RA-SD
PES-08-02-L-RA-SD
lmages are for reference only.Payment Methods
Delivery Services
8 Position Receptacle, Female Blade Sockets Connector Solder 0.250" (6.35mm) Through Hole, Right Angle
Quick Inquiry
PES-08-02-L-RA-SD
Specifications
| Category | Connectors, Interconnects - Blade Type Power Connectors - Blade Type Power Connector Assemblies |
| Manufacturer | Samtec Inc. |
| Series | PowerStrip™ 40 PES |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Connector Style | - |
| Connector Type | Receptacle, Female Blade Sockets |
| Number of Positions | 8 |
| Pitch | 0.250" (6.35mm) |
| Mounting Type | Through Hole, Right Angle |
| Number of Rows | 1 |
| Termination | Solder |
| Wire Gauge | - |
| Features | Flange |
| Color | Black |
| Fastening Type | Push-Pull |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) |
| Voltage Rating | 450 V |
| Current Rating (Amps) | 58.7 A |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Operating Temperature | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
 |
|
|

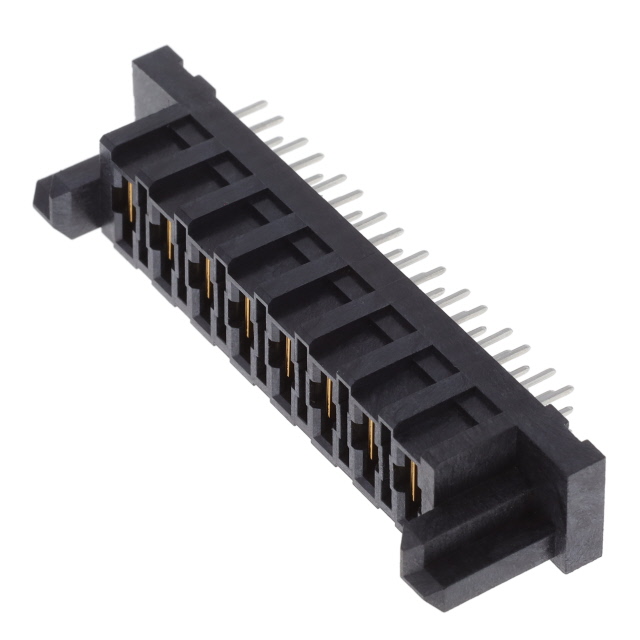

| Part Number | PES-08-02-L-RA-LC | PES-08-02-L-VT | PES-08-02-L-VT-LC | PES-08-01-L-RA-LC |
| Manufacturer | Samtec Inc. | Samtec Inc. | Samtec Inc. | Samtec Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN RCPT 8POS 6.35MM R/A SLDR | CONN RCPT 8POS PCB SLDR | CONN RCPT 8POS 6.35MM PCB SLDR | CONN RCPT 8POS 6.35MM EDGE R/A |
| Series | PowerStrip™ 40 PES | PowerStrip™ 40 PES | PowerStrip™ 40 PES | PowerStrip™ 40 PES |
| Packaging | Tray | Tray | Tray | Tray |
Customers Also Interested in
Recommended Products
PES-02-01-L-RA-LC
Samtec Inc.
PES-02-01-L-RA-SD
Samtec Inc.
PES-02-01-L-VT
Samtec Inc.
PES-02-01-S-RA-LC
Samtec Inc.
PES-02-01-S-RA-SD
Samtec Inc.
PES-02-01-S-VT
Samtec Inc.
PES-02-01-S-VT-LC
Samtec Inc.
PES-02-01-T-RA-SD
Samtec Inc.
PES-02-01-T-VT
Samtec Inc.
PES-02-02-L-RA-LC
Samtec Inc.
PES-02-02-L-RA-SD
Samtec Inc.
PES-02-02-L-VT
Samtec Inc.
PES-02-02-L-VT-LC
Samtec Inc.
PES-02-02-S-RA-LC
Samtec Inc.
PES-02-02-S-RA-SD
Samtec Inc.
PES-02-02-S-VT
Samtec Inc.

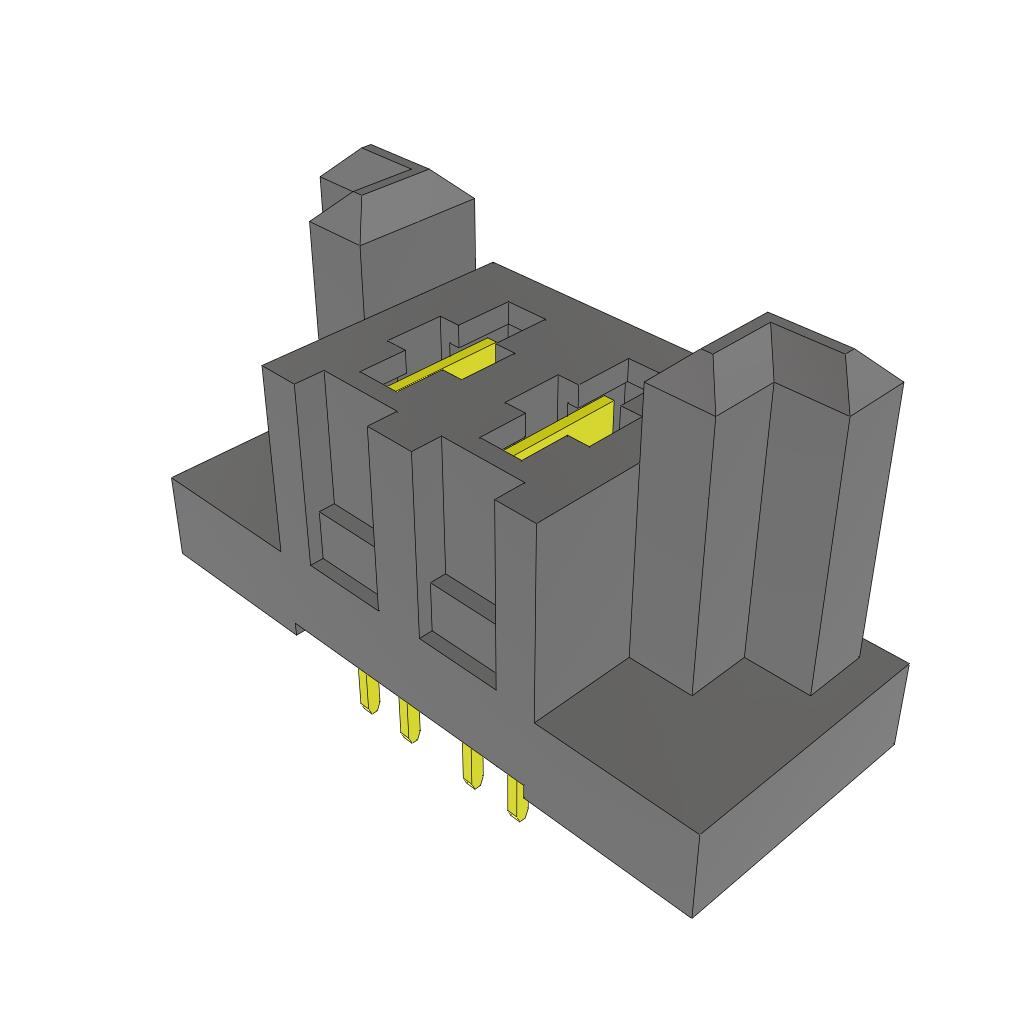

PES-02-02-S-VT-LC
