PESD24VL2BAT-QR
Manufacturer
Nexperia USA Inc.Description
BIPOLAR DISCRETES
Datasheet
DatasheetPackage
TO-236-3, SC-59, SOT-23-3
In Stock
85,575 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PESD24VL2BAT-QR
PESD24VL2BAT-QR
lmages are for reference only.Payment Methods
Delivery Services

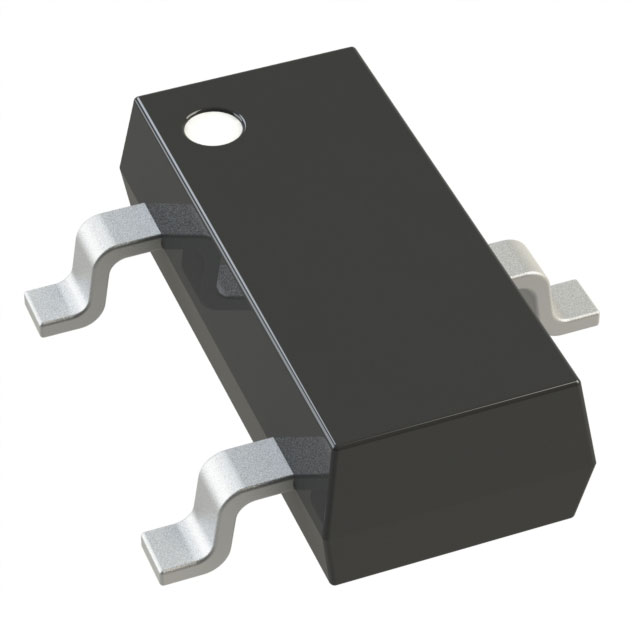

41V Clamp 4A (8/20µs) Ipp Tvs Diode Surface Mount TO-236AB
Quick Inquiry
PESD24VL2BAT-QR
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Nexperia USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 2 |
| Voltage - Reverse Standoff (Typ) | 24V (Max) |
| Voltage - Breakdown (Min) | 25.5V |
| Voltage - Clamping (Max) @ Ipp | 41V |
| Current - Peak Pulse (10/1000µs) | 4A (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | CAN |
| Capacitance @ Frequency | 9pF @ 1MHz |
| Operating Temperature | -55°C ~ 175°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | TO-236AB |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
