PESD5V0R1BBSFYL
lmages are for reference only.PESD5V0R1BBSFYL
TREOS HIGH-SPEED PROTECTION
Datasheet0201 (0603 Metric)
66,493 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Clamp Ipp Tvs Diode Surface Mount DSN0603-2
PESD5V0R1BBSFYL
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Nexperia USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | - |
| Voltage - Clamping (Max) @ Ipp | - |
| Current - Peak Pulse (10/1000µs) | - |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | Telecom, USB |
| Capacitance @ Frequency | - |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | DSN0603-2 |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

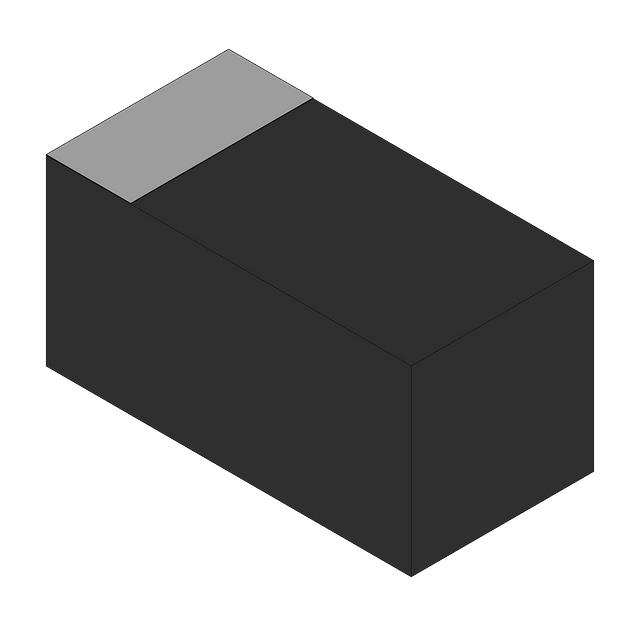

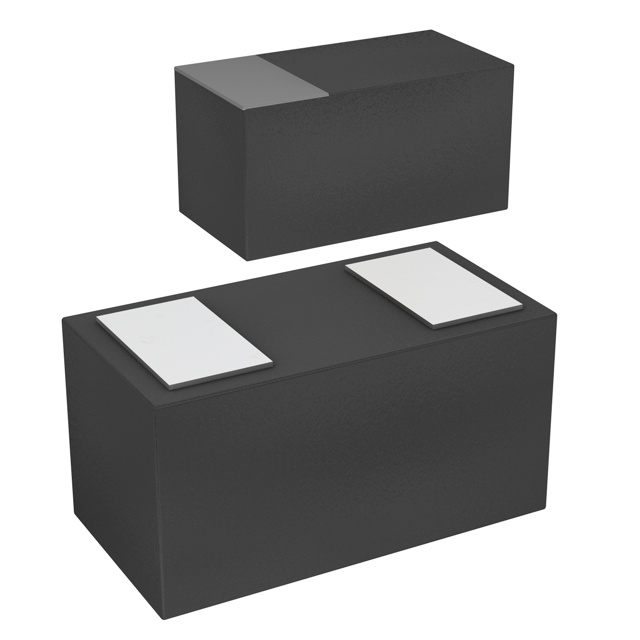

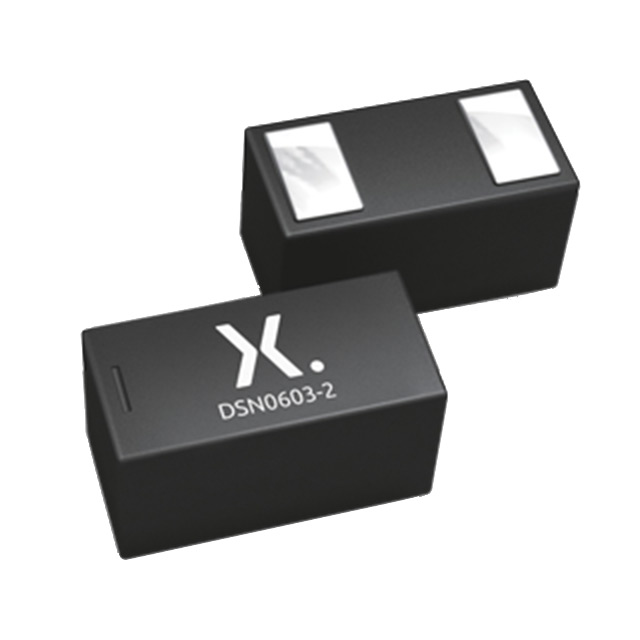

| Part Number | PESD5V0R1BCSFYL | PESD5V0R1BDSFYL | PESD5V0R1BSF/S5AYL | PESD5V0R1BSF315 |
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | NXP USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | Not applicable |
| Description | TREOS HIGH-SPEED PROTECTION | TVS DIODE 5VWM DSN0603-2 | TVS DIODE 5VWM 9.2VC DSN0603-2 | TVS DIODE |
| Series | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | NXP USA Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Bulk |
