Product CatalogPart Number
PESD5V0X2UM-QYL
Manufacturer
Nexperia USA Inc.Description
PESD5V0X2UM-Q/SOT883/XQFN3
Datasheet
DatasheetPackage
SC-101, SOT-883
In Stock
18,793 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PESD5V0X2UM-QYL
PESD5V0X2UM-QYL

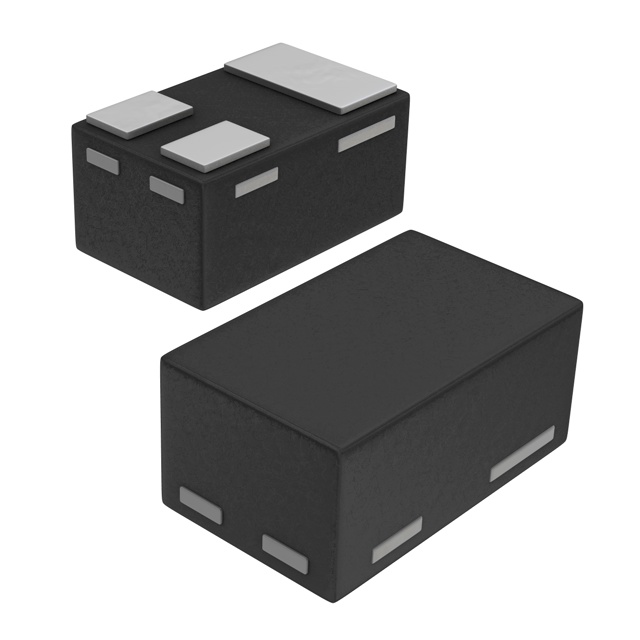

lmages are for reference only.Payment Methods
Delivery Services
14V Clamp 1.5A (8/20µs) Ipp Tvs Diode Surface Mount SOT-883
Quick Inquiry
PESD5V0X2UM-QYL
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Nexperia USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 7.5V |
| Voltage - Clamping (Max) @ Ipp | 14V |
| Current - Peak Pulse (10/1000µs) | 1.5A (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | Telecom |
| Capacitance @ Frequency | 0.5pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SC-101, SOT-883 |
| Supplier Device Package | SOT-883 |
| Base Product Number | - |
| Unidirectional Channels | 2 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | PESD5V0X2UAM-QYL | PESD5V0X2UAMBYL | PESD5V0X2UAMYL | PESD5V0X2UMB-QYL |
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PESD5V0X2UAM-Q/SOT883/XQFN3 | TVS DIODE 5VWM 14VC SOT883 | TVS DIODE 5VWM 14VC SOT883 | PESD5V0X2UMB-Q/SOT883B/XQFN3 |
| Series | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
