PF-FB1-175

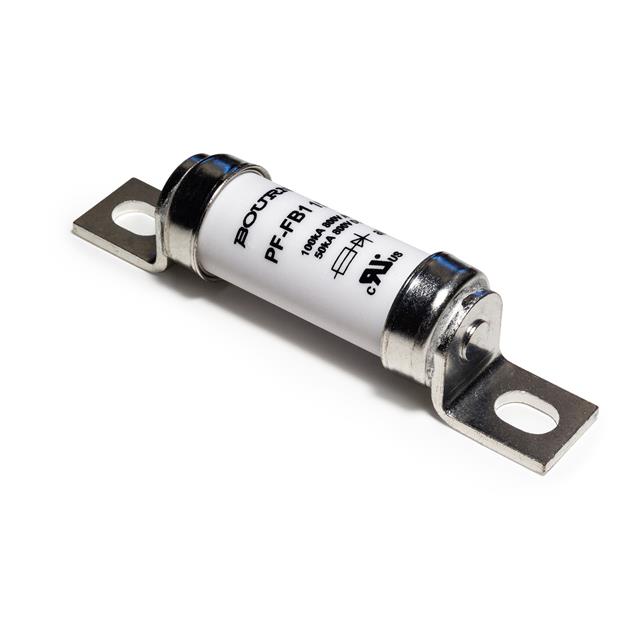

lmages are for reference only.PF-FB1-175
FUSE BOLT MNT 800VAC 800VDC 175A
DatasheetCylindrical, Blade Terminal (Bolt)
77,292 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
175A 800 VAC 800 VDC Fuse Cartridge Bolt Mount
PF-FB1-175
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Bourns Inc. |
| Series | POWrFuse™ PF-F |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Bolt Mount |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 175A |
| Voltage Rating - AC | 800 VAC |
| Response Time | - |
| Applications | Semiconductors |
| Features | - |
| Class | aR |
| Approval Agency | cURus |
| Operating Temperature | -55°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 100kA AC, 50kA DC |
| Package / Case | Cylindrical, Blade Terminal (Bolt) |
| Size / Dimension | 1.386" Dia x 2.724" L (35.20mm x 69.20mm) |
| Base Product Number | - |
| Voltage Rating - DC | 800 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | 17500.0 |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PF-FB1-100 | PF-FB1-125 | PF-FB1-150 | PF-FB1-160 |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE BOLT MNT 800VAC 800VDC 100A | FUSE BOLT MNT 800VAC 800VDC 125A | FUSE BOLT MNT 800VAC 800VDC 150A | FUSE BOLT MNT 800VAC 800VDC 160A |
| Series | POWrFuse™ PF-F | POWrFuse™ PF-F | POWrFuse™ PF-F | POWrFuse™ PF-F |
| Packaging | Box | Box | Box | Box |
