Product CatalogPart Number
PF0552.334NLT
Manufacturer
Pulse ElectronicsDescription
INDUCT ARRAY 2 COIL 340UH SMD
Datasheet
DatasheetPackage
Nonstandard
In Stock
38,074 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PF0552.334NLT
PF0552.334NLT
lmages are for reference only.Payment Methods
Delivery Services
Shielded 2 Coil Inductor Array 1.3 µH Inductance - Connected in Series 340 µH Inductance - Connected in Parallel 470mOhm Max DC Resistance (DCR) - Parallel 1.2 A Nonstandard
Quick Inquiry
PF0552.334NLT
Specifications
| Category | Inductors, Coils, Chokes - Arrays-Signal Transformers - |
| Manufacturer | Pulse Electronics |
| Series | PF0552NL |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 340 µH |
| Inductance - Connected In Series | 1.3 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 1.2 A |
| Current Rating - Series | 610 mA |
| Current Saturation - Parallel | 1.2 A |
| Current Saturation - Series | 620 mA |
| DC Resistance (DCR) - Parallel | 470mOhm Max |
| DC Resistance (DCR) - Series | 1.9Ohm Max |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height | 0.236" (6.00mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
|
|
 |
| Part Number | PF0552.334NL | PF0552.334NL | PF0552.334NLT | PF0552.102NLT |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | INDUCT ARRAY 2 COIL 340UH SMD | INDUCT ARRAY 2 COIL 340UH SMD | INDUCT ARRAY 2 COIL 340UH SMD | INDUCT ARRAY 2 COIL 910NH SMD |
| Series | PF0552NL | PF0552NL | PF0552NL | PF0552NL |
| Packaging | Tray | Tray | Tape & Reel (TR) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products

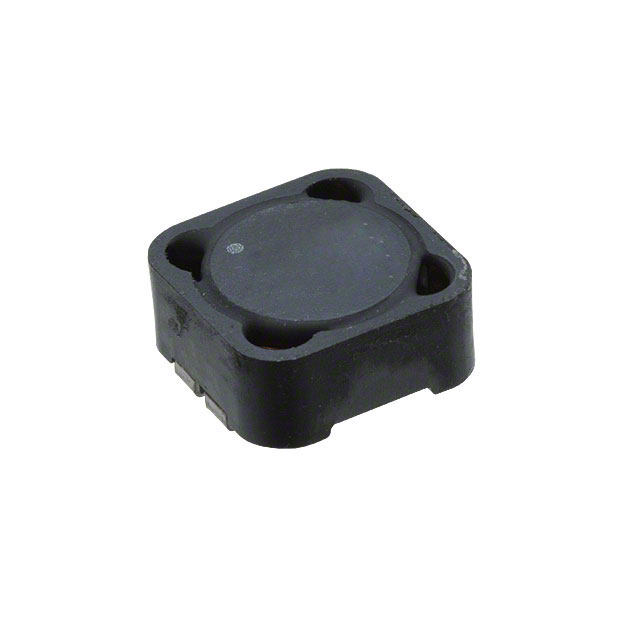

PF0552.102NLT
